Ford Ecosport: Handles, Locks, Latches and Entry Systems / Removal and Installation - Tailgate Latch
Removal
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
-
Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
Vehicles with push button start
-
Disconnect the electrical connectors from the tailgate latch.
-
Disconnect the electrical connector(s) from the tailgate release handle.
-

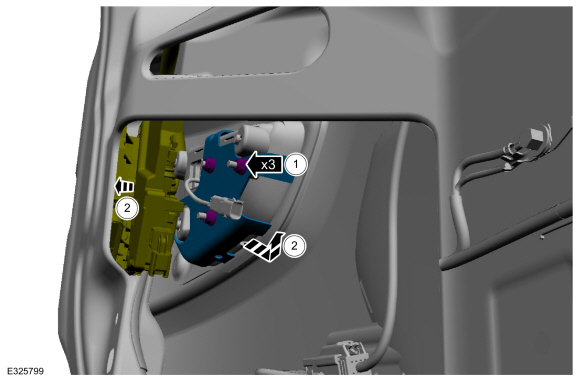

Remove the tailgate latch bolts.
Torque:
71 lb.in (8 Nm)
-
Remove the tailgate release handle bracket.
-
Remove the tailgate release handle nuts.
Torque:
89 lb.in (10 Nm)
-
Position the tailgate latch aside and remove the tailgate release handle bracket.
-
Remove the tailgate latch.
Vehicles without push button start
-
Disconnect the electrical connectors from the tailgate latch.
-
Disconnect the cables and rods from the tailgate release handle.
-
Disconnect the electrical connector(s) from the tailgate release handle.
-
Remove the tailgate latch bolts.
Torque:
71 lb.in (8 Nm)
-
Remove the tailgate release handle bracket.
-
Remove the tailgate release handle nuts.
Torque:
89 lb.in (10 Nm)
-
Position the tailgate latch aside and remove the tailgate release handle bracket.
-
Remove the tailgate latch.
All vehicles
-
NOTE:
This step is only necessary when installing a new component.
Remove the tailgate latch actuator and cable.
-
Remove the tailgate latch actuator cable from the mounting bracket.
-
Remove the tailgate latch actuator cable end from the tailgate latch.
-
Remove the tailgate latch actuator cable from the mounting bracket.
-
Remove the tailgate latch actuator cable end from the tailgate latch actuator.
-
Release the retaining tabs and remove the tailgate latch actuator.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the tailgate latch.
Refer to: Tailgate Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation)...
