Ford Ecosport: Engine - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Oil Pressure Switch

Ford Ecosport 2014-2024 Service and Repair Manual / Engine / Engine - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Oil Pressure Switch

Materials

Name Specification
Motorcraft® Thread Sealant with PTFE
TA-24-B		 WSK-M2G350-A2


Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

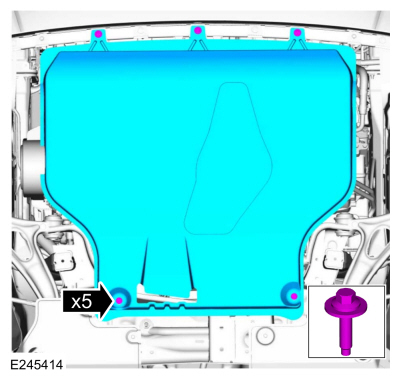

  1. If equipped, remove the bolts and the underbody shield.
  1. Disconnect the oil pressure switch electrical connector.
    • Remove and discard the oil pressure switch.
      Torque:
        Stage 1:  106 lb.in (12 Nm)
        Stage 2:  180°
    • If the oil pressure switch is to be reused, apply thread sealant to the oil pressure switch threads.
      Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

Installation

  1. To install, reverse the removal procedure.
