Ford Ecosport: Rear Suspension - AWD / Removal and Installation - Rear Stabilizer Bar Link

Ford Ecosport 2014-2024 Service and Repair Manual / Suspension / Rear Suspension - AWD / Removal and Installation - Rear Stabilizer Bar Link

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. NOTICE: Do not use power tools to remove or install the stabilizer bar link nuts. Damage to the stabilizer bar link ball joints and boots may occur.

    NOTICE: Make sure that the ball joint ball does not rotate.

    NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

    NOTE: Use the hex-holding feature to prevent the stud from turning while removing or installing the nuts.

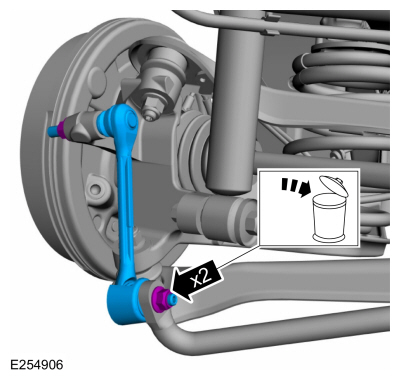

    Remove and discard the rear stabilizer link nuts and remove the rear stabilizer link.
    Torque: 35 lb.ft (48 Nm)

Installation

  1. To install, reverse the removal procedure.
