Ford Ecosport: Engine - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Engine Mount

Special Tool(s) / General Equipment

Trolley Jack
Wooden Block

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. If equipped, remove the bolts and the underbody shield.
  1. Release the tabs, retainer and position the degas bottle aside.
  1. Detach the A/C line retainer and from the engine mount.
  1. NOTE: Do not support the engine on the A/C compressor.

    Using a trolley jack and wooden block, support the engine.
    Use the General Equipment: Trolley Jack
    Use the General Equipment: Wooden Block

    • Remove the nuts, bolts and the engine mount.
    • Discard the nuts and bolts.

Installation

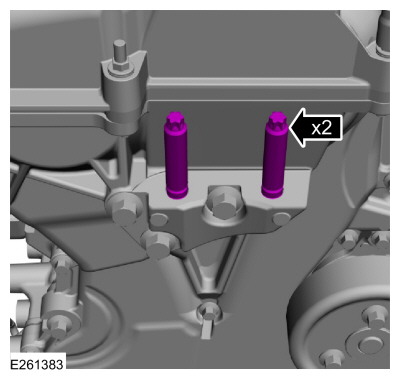

  1. Tighten the engine mount studs.
    Torque: 93 lb.in (10.5 Nm)
    • Install the engine mount and the nuts.
      Torque: 59 lb.ft (80 Nm)
    • Install the engine mount bolts.
      Torque: 66 lb.ft (90 Nm)
  1. Remove the trolley jack and wooden block.
    Use the General Equipment: Trolley Jack
    Use the General Equipment: Wooden Block
  1. Attach the A/C line retainer to the engine mount.
  1. Position back the degas bottle and connect the tabs and retainer.
  1. If equipped, install the underbody shield and the retainers.
