Ford Ecosport: Rear Drive Halfshafts / Removal and Installation - Rear Halfshaft
Special Tool(s) /
General Equipment
Materials
Name |
Specification |
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL |
WSP-M2C197-A
|
Removal
NOTICE:
Never pick up or hold the halfshaft by only the inner or outer CV joint. Damage to the CV joint will occur.
NOTICE:
Never use a hammer to remove or install the halfshafts. Damage to the CV joint may occur.
NOTICE:
Never use the halfshaft assembly as a lever to position other components. Damage to the halfshaft or CV joint may occur.
NOTICE:
Do not allow the boots to contact sharp edges or hot exhaust components. Damage to the halfshaft boots will occur.
NOTICE:
Do not drop assembled halfshafts. The impact may cut the boots from the inside without evidence of external damage.
-
Remove the wheel knuckle.
Refer to: Wheel Knuckle - Vehicles With: Rear Disc Brakes (204-02B Rear Suspension - AWD, Removal and Installation).
Refer to: Wheel Knuckle - Vehicles With: Rear Disc Brakes (204-02B Rear Suspension - AWD, Removal and Installation).
-
WARNING:
Be prepared to collect escaping fluid.
-
Install the tire lever.
Use the General Equipment: Tire Lever
-
Remove the rear halfsahft.
-
-

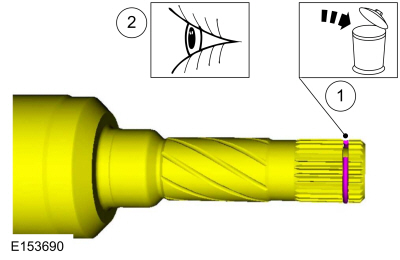

Remove and discard the halfshaft retaining circlip.
-
Inspect the halfshaft end for damage.
Installation
NOTE:
The halfshaft seal has to be replaced whenever the halfshaft is removed.
-
Replace the rear halfshaft seal.
Refer to: Rear Halfshaft Seal (205-02 Rear Drive Axle/Differential, Removal and Installation).
-
NOTE:
The halfshaft circlip has to be replaced whenever the halfshaft is removed.
Install the new rear halfshaft retaining circlip.
-
Using seal protector, install the halfshaft splines through the seal protector and remove the seal protector.
-
Remove the filler plug.
-

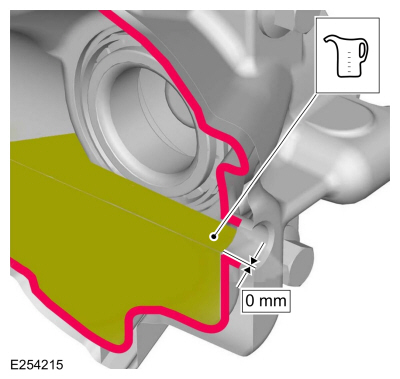

NOTE:
Fill the rear axle with 0.47-0.62L (1.0-1.3 pt) of
rear axle lubricant. If fluid level is low, fill to 0-2 mm (0-0.079 in)
below the bottom of the filler hole.
Correct the rear axle oil level if necessary.
Refer to: Specifications (205-02 Rear Drive Axle/Differential, Specifications).
Material: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
/ XY-80W90-QL
(WSP-M2C197-A)
-
Install the filler plug.
Torque:
18 lb.ft (25 Nm)
-
Install the wheel knuckle.
Refer to: Wheel Knuckle - Vehicles With: Rear Disc Brakes (204-02B Rear Suspension - AWD, Removal and Installation).
Refer to: Wheel Knuckle - Vehicles With: Rear Disc Brakes (204-02B Rear Suspension - AWD, Removal and Installation).
