Ford Ecosport: Information and Entertainment System - General Information / Description and Operation - Information and Entertainment System - Component Location
Ford Ecosport 2014-2024 Service and Repair Manual / Information and Entertainment Systems / Information and Entertainment System - General Information / Description and Operation - Information and Entertainment System - Component Location
NOTE: The available speaker configurations are shown first. The remaining hidden audio and SYNC system components follow the speaker configurations.

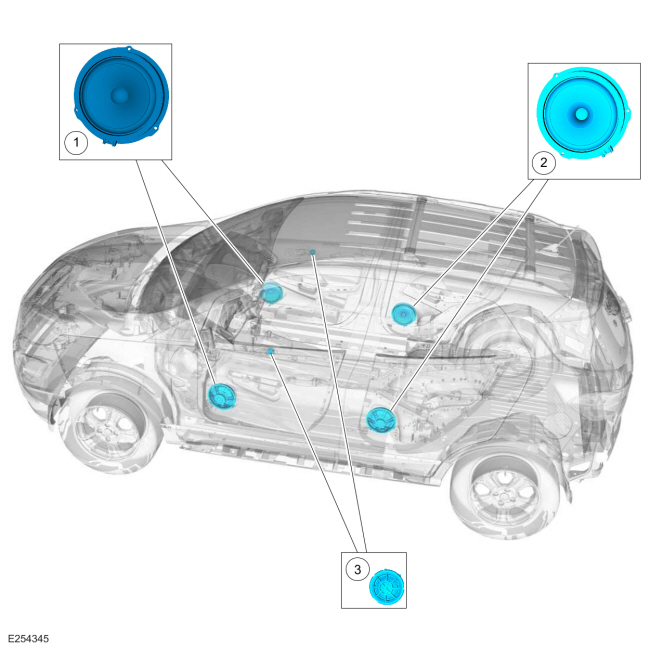

6 Speaker System
| Item | Description |
|---|---|
| 1 | Front door speakers |
| 2 | Rear door speakers |
| 3 | Tweeter speakers |

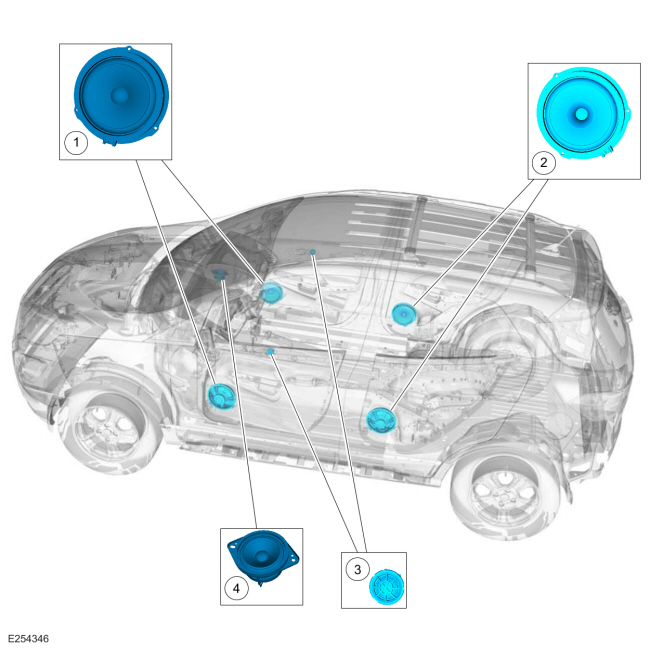

7 Speaker System
| Item | Description |
|---|---|
| 1 | Front door speakers |
| 2 | Rear door speakers |
| 3 | Tweeter speakers |
| 4 | Instrument panel center speaker |

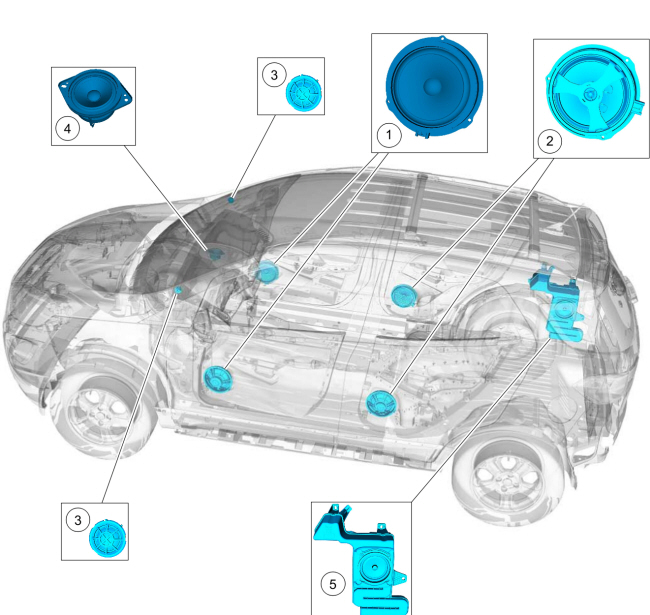

10 Speaker System
| Item | Description |
|---|---|
| 1 | Front door speakers |
| 2 | Rear door speakers (coaxial) (counted as 2 speakers - tweeter and woofer) |
| 3 | Tweeter speakers |
| 4 | Instrument panel center speaker |
| 5 | Subwoofer speaker and enclosure |

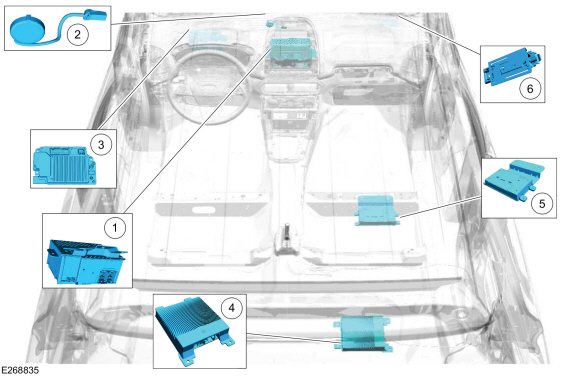

Audio/SYNC System Main Components
| Item | Description |
|---|---|
| 1 | ACM |
| 2 | Microphone |
| 3 | APIM |
| 4 | DSP |
| 5 | TCU |
| 6 | TCU antenna |

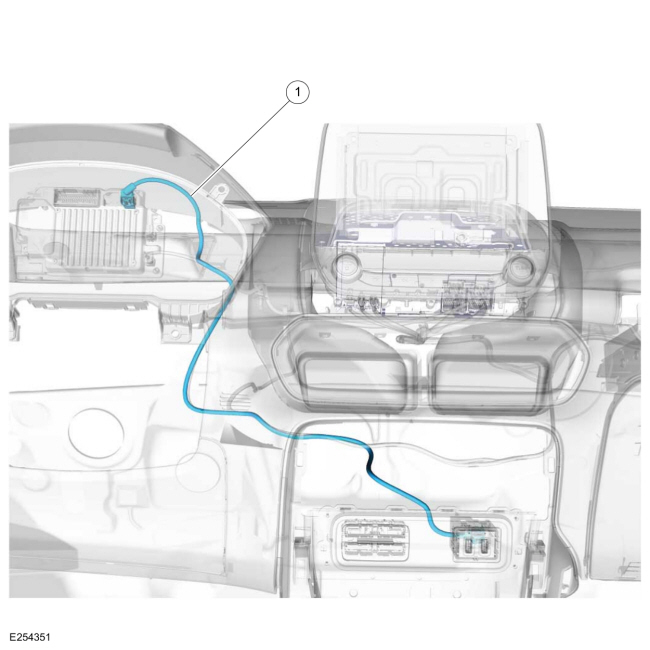

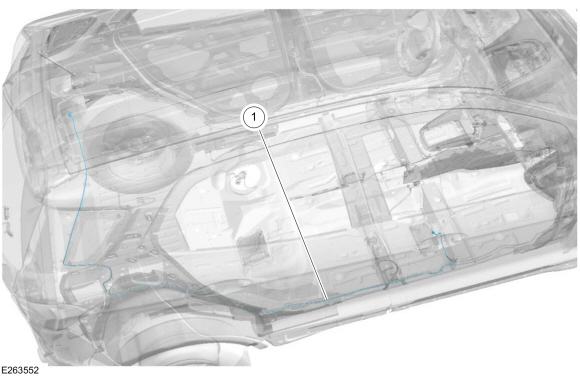

USB Cable Routing
| Item | Description |
|---|---|
| 1 | USB cable |

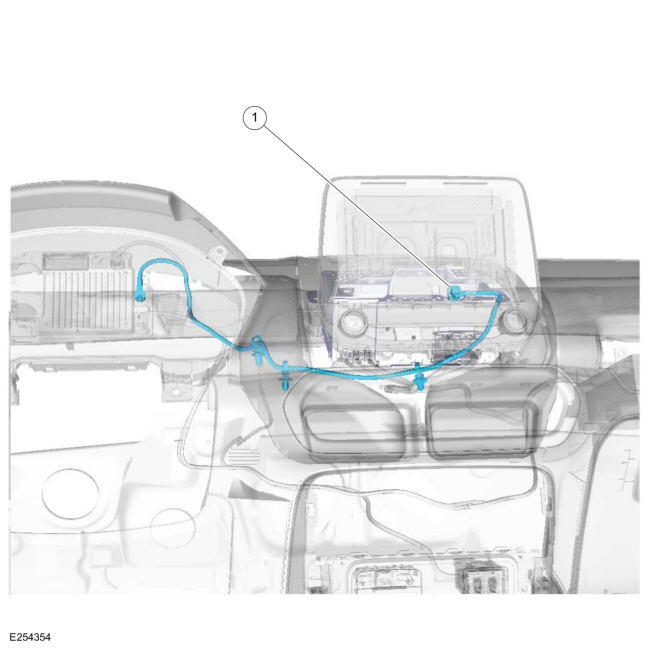

LVDS Cable Routing
| Item | Description |
|---|---|
| 1 | LVDS cable |

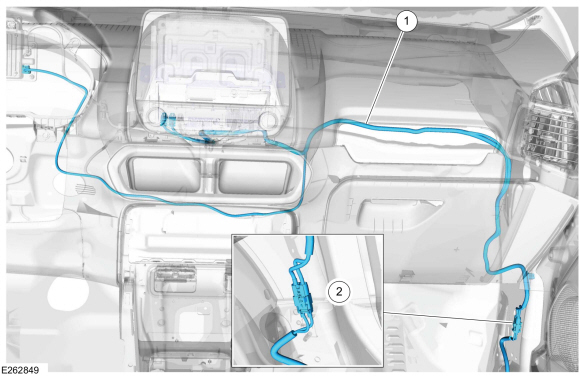

AM / FM 1/ GPS /Satellite Antenna Coaxial Cable Routing - Front
| Item | Description |
|---|---|
| 1 | Front AM / FM 1/ GPS /satellite antenna coaxial cable |
| 2 | Front antenna coaxial cable in-line connection |

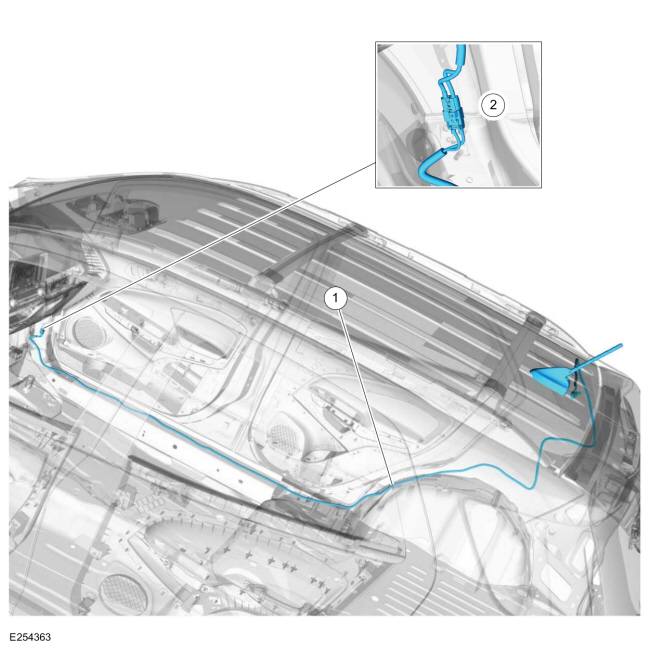

AM / FM 1/ GPS /Satellite Antenna Coaxial Cable Routing - Rear
| Item | Description |
|---|---|
| 1 | Rear AM / FM 1/ GPS /satellite antenna coaxial cable |
| 2 | Front antenna coaxial cable in-line connection |

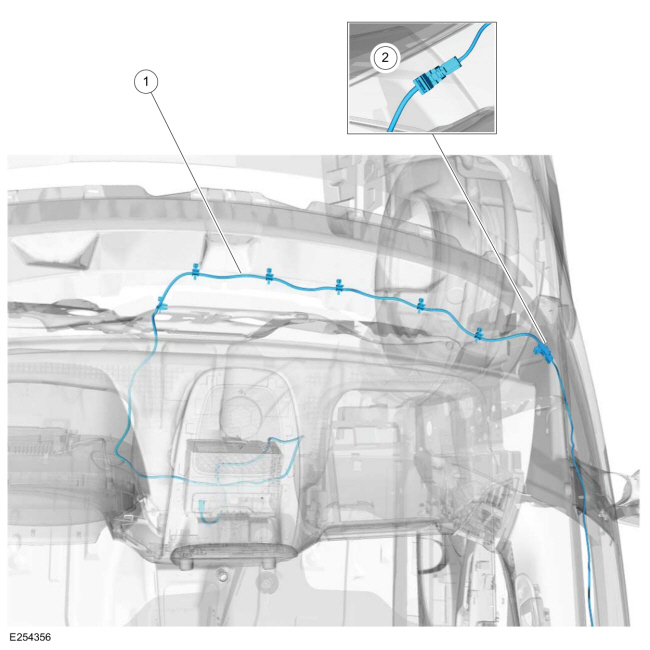

FM 2 Diversity Antenna Coaxial Cable Routing - Front (if equipped)
| Item | Description |
|---|---|
| 1 | Front FM 2 diversity antenna coaxial cable |
| 2 | Front diversity antenna coaxial in-line connection (located in the A-pillar) |

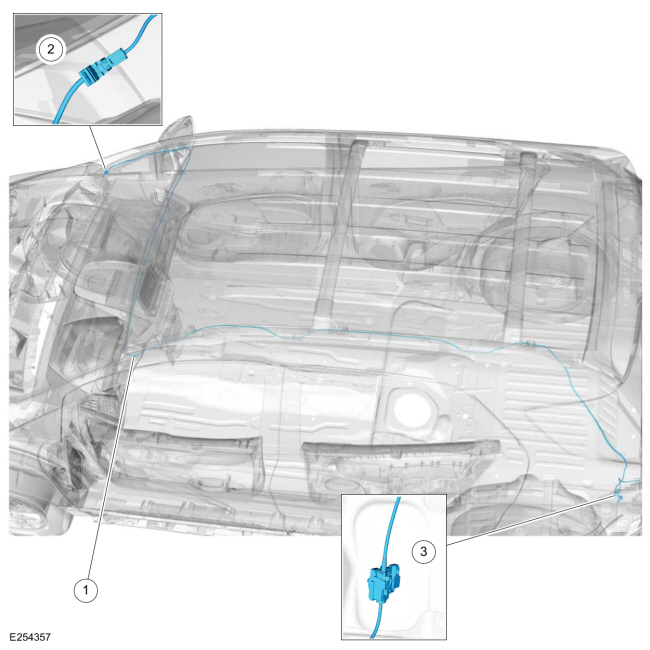

FM 2 Diversity Antenna Coaxial Cable Routing - Center (if equipped)
| Item | Description |
|---|---|
| 1 | Center FM 2 diversity antenna coaxial cable |
| 2 | Front diversity antenna coaxial in-line connection |
| 3 | Rear diversity antenna coaxial in-line connection |

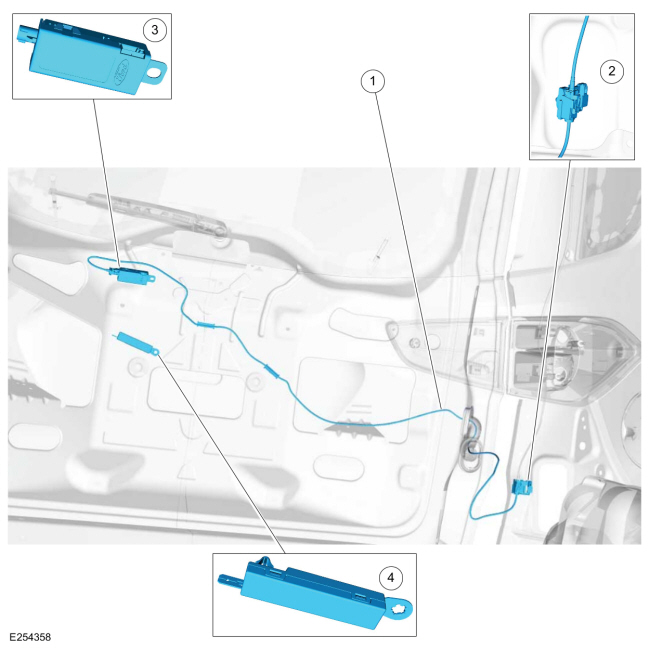

FM 2 Diversity Antenna Coaxial Cable Routing - Rear (if equipped)
| Item | Description |
|---|---|
| 1 | Rear FM 2 diversity antenna coaxial cable |
| 2 | Rear diversity antenna coaxial in-line connection |
| 3 | Antenna amplifier |
| 4 | Antenna isolator |

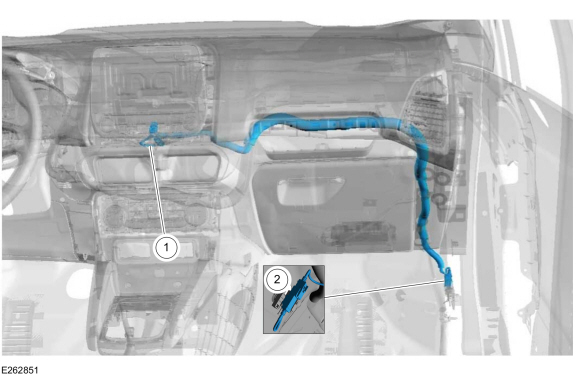

Front Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Front Automobile Audio Bus (A2B) cable |
| 2 | Automobile Audio Bus (A2B) cable in-line connection |

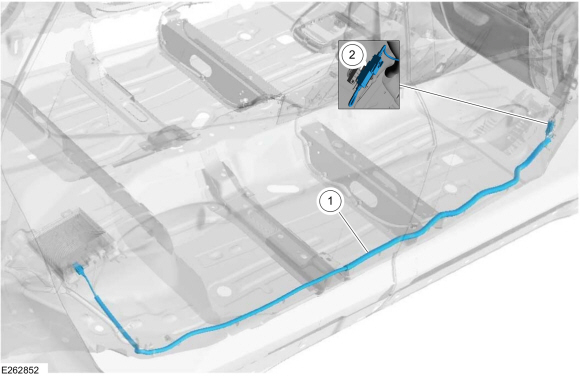

Rear Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Rear Automobile Audio Bus (A2B) cable |
| 2 | Automobile Audio Bus (A2B) cable in-line connection |

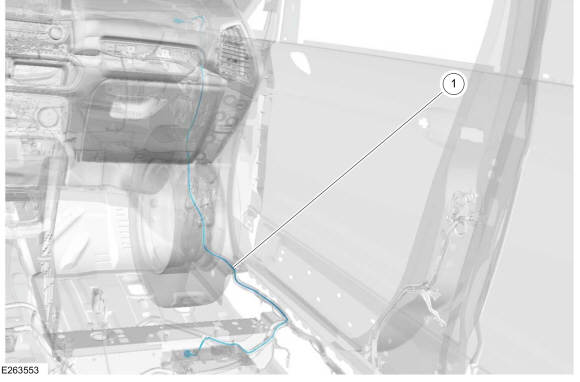

TCU Cable Routing
| Item | Description |
|---|---|
| 1 | TCU cable |
Cellular Coaxial Cable Routing
| Item | Description |
|---|---|
| 1 | Cellular coaxial cable |
Description and Operation - Information and Entertainment System - Overview
Overview
Audio System
NOTE:
Refer to the Owner Literature for additional details of the audio system.
AM / FM /Satellite Radio
The ACM
can operate when the ignition is on or off...
