Ford Ecosport: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Removal and Installation - Torque Converter Seal

Ford Ecosport 2014-2024 Service and Repair Manual / Automatic Transmission / Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Removal and Installation - Torque Converter Seal

Special Tool(s) / General Equipment

307-003 (T57L-500-B)
Holding Fixture, Transmission
307-091
Handle, Torque Converter
TKIT-2009TC-F
307-566
Retainer, Torque Converter
TKIT-2006C-FFMFLM
TKIT-2006C-LM
TKIT-2006C-ROW
307-625
Fixture, Bench Mounting
TKIT-2008ET-FLM
TKIT-2008ET-ROW
307-627
Installer, Converter Seal
TKIT-2008ET-FLM
TKIT-2008ET-ROW
Puller

Removal

  1. Remove the transmission.
    Refer to: Transmission - 1.0L EcoBoost (92kW/125PS) (307-01A Automatic Transmission - 6-Speed Automatic Transmission – 6F15, Removal and Installation).
  1. Install the special tool.
    Use Special Service Tool: 307-625  Fixture, Bench Mounting.
  1. Mount the transmission to the bench-mounted holding fixture.
    Use Special Service Tool: 307-003 (T57L-500-B)  Holding Fixture, Transmission. , 307-625  Fixture, Bench Mounting.
  1. Remove the special tool.
    Use Special Service Tool: 307-566  Retainer, Torque Converter.

  1. NOTICE: The torque converter is heavy. Be careful not to drop it or damage will result.

    Using the special tools, remove the torque converter from the transmission.
    Use Special Service Tool: 307-091  Handle, Torque Converter.

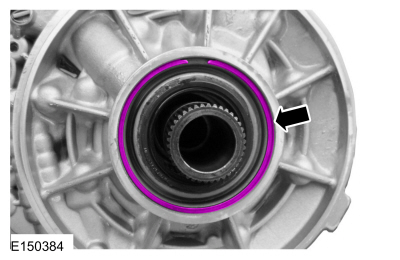

  1. Remove the torque converter hub seal snap ring.
  1. Using a dent puller, remove and discard the torque converter hub seal.
    Use the General Equipment: Puller

Installation

  1. Install a new torque converter hub seal on the special tool.
    Use Special Service Tool: 307-627  Installer, Converter Seal.
  1. Using the special tool, install a new torque converter hub seal.
    Use Special Service Tool: 307-627  Installer, Converter Seal.
  1. Install the torque converter hub seal snap ring.

  1. NOTICE: The torque converter is heavy. Be careful not to drop it or damage will result.

    Using the special tools, install the torque converter.
    Use Special Service Tool: 307-091  Handle, Torque Converter.
  1. Install the special tool.
    Install Special Service Tool: 307-566  Retainer, Torque Converter.
  1. Remove the transmission from the bench-mounted holding fixture.
    Use Special Service Tool: 307-003 (T57L-500-B)  Holding Fixture, Transmission. , 307-625  Fixture, Bench Mounting.
  1. Remove the special tool.
    Use Special Service Tool: 307-625  Fixture, Bench Mounting.
  1. Install the transmission.
    Refer to: Transmission - 1.0L EcoBoost (92kW/125PS) (307-01A Automatic Transmission - 6-Speed Automatic Transmission – 6F15, Removal and Installation).

    Removal and Installation - Solenoid Body

    Removal To remove the solenoid body. Refer to: Main Control Valve Body (307-01B) . Installation To install, reverse the removal procedure...
