Ford Ecosport: Power Steering / Removal and Installation - Tie Rod End
Special Tool(s) /
General Equipment
 |
211-001
(TOOL-3290-D)
Remover, Tie-Rod End |
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
-
NOTICE:
Make sure that a new nut is installed.

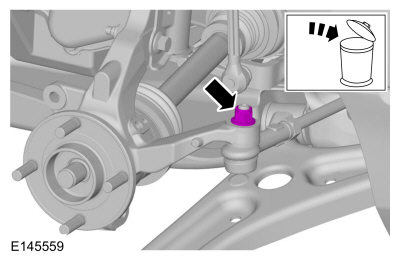

Remove and discard the tie rod end nut.
Torque:
39 lb.ft (53 Nm)
-
NOTICE:
Make sure that the ball joint ball does not rotate.
Loosen the tie rod end jamb nut.
Torque:
46 lb.ft (63 Nm)
-
Separate the tie rod end from the wheel knuckle.
Use Special Service Tool: 211-001
(TOOL-3290-D)
Remover, Tie-Rod End.
-
NOTE:
Note the position of the component before removal.
NOTE:
Make sure that the tie rod end is installed with the same number of turns as when removed.
Remove the tie rod end.
Installation
-
To install, reverse the removal procedure.
-
Check and if necessary, adjust front toe.
Refer to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
