Removal
-
Remove the high-pressure fuel pump.
Refer to: High-Pressure Fuel Pump (303-04C Fuel Charging and Controls - 2.0L Duratec-HE (129kW/175PS), Removal and Installation).
-
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
-

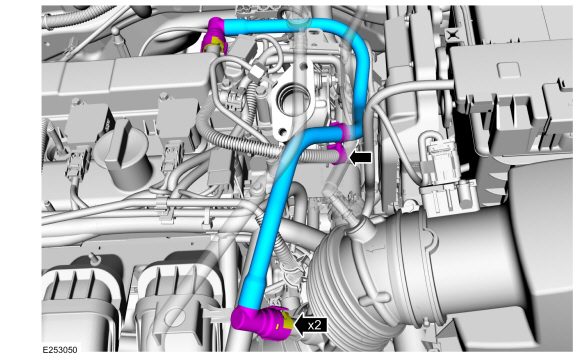

Disconnect the vacuum tube quick release couplings and position out of the way.
Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 2.0L Duratec-HE (129kW/175PS)/2.0L Duratec-HE (125kW/170PS) - MI4/2.0L Duratec-HE Flex Fuel (129kW/175PS)) .
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
 |
-
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
-

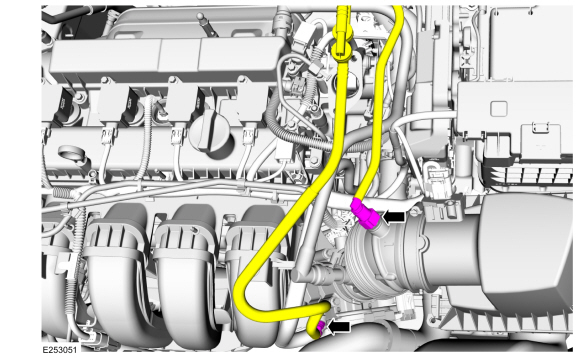

Release the hose retainer. Disconnect the quick
release couplings, then remove the crankcase ventilation tube.
Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 2.0L Duratec-HE (129kW/175PS)/2.0L Duratec-HE (125kW/170PS) - MI4/2.0L Duratec-HE Flex Fuel (129kW/175PS)) .
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
 |
-

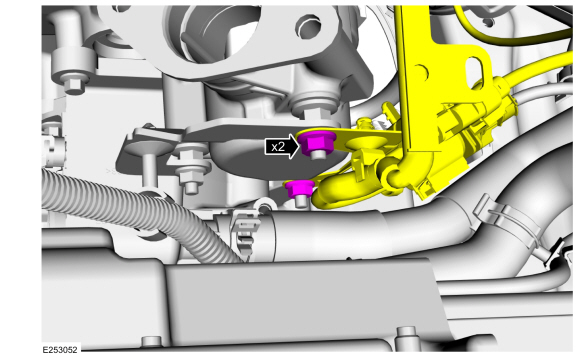

Remove the wire harness bracket nuts, then position the wire harness and bracket out of the way.
 |
-

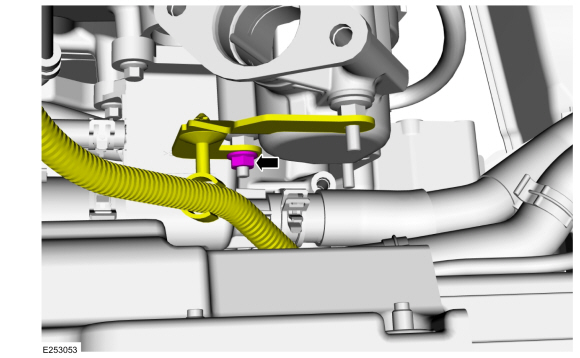

Remove the fuel supply tube bracket nut, then position the fuel supply tube and bracket out of the way.
 |
-
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
-

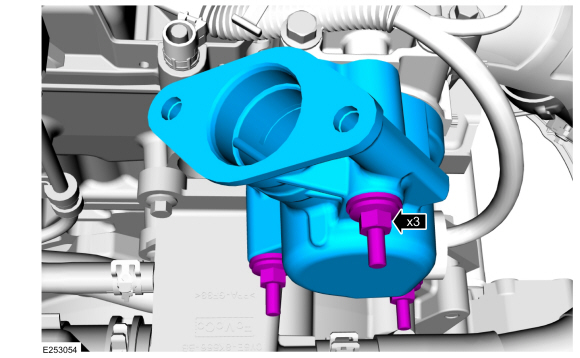

Remove the high-pressure fuel pump drive unit
studbolts and then remove the high-pressure fuel pump drive unit.
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
 |
Installation
NOTICE: Make sure that the mating faces are clean and free of foreign material.
-
-
Make sure that the mating faces are clean and free of foreign material.
-

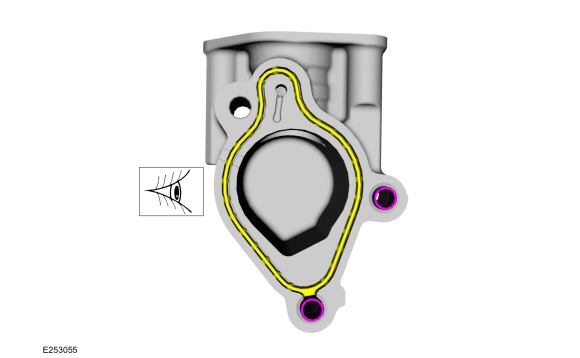

Inspect the high-pressure fuel pump drive unit
gasket, clean and replace the high-pressure fuel pump drive unit gasket
as needed.
-
Make sure that the mating faces are clean and free of foreign material.
 |
-
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
-
Install the high-pressure fuel pump drive unit, then
install and tighten the high-pressure fuel pump drive unit studbolts in
the following 2 stages.
Torque:
Stage 1: 16 lb.ft (22 Nm)
Stage 2: 45°
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
|
-
Install the fuel supply tube and bracket, install and tighten the fuel supply tube bracket nut.
Torque: 97 lb.in (11 Nm)
|
-
Install the wire harness and bracket, install and tighten the wire harness bracket nuts.
Torque: 97 lb.in (11 Nm)
|
-
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
-
Install the crankcase ventilation tube, then connect the quick release couplings.
Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 2.0L Duratec-HE (129kW/175PS)/2.0L Duratec-HE (125kW/170PS) - MI4/2.0L Duratec-HE Flex Fuel (129kW/175PS)) .
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
|
-
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
-
Connect the vacuum tube quick release couplings.
Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 2.0L Duratec-HE (129kW/175PS)/2.0L Duratec-HE (125kW/170PS) - MI4/2.0L Duratec-HE Flex Fuel (129kW/175PS)) .
-
During the removal or installation of components,
cap, tape or otherwise appropriately protect all openings and
tubes/fittings to prevent the ingress of dirt or other contamination.
Remove caps, tape and other protective materials prior to installation.
|
-
Install the high-pressure fuel pump.
Refer to: High-Pressure Fuel Pump (303-04C Fuel Charging and Controls - 2.0L Duratec-HE (129kW/175PS), Removal and Installation).
