Ford Ecosport: Body Closures / Removal and Installation - Spare Wheel Mounting Bracket

Ford Ecosport 2014-2024 Service and Repair Manual / Body and Paint / Body Closures / Removal and Installation - Spare Wheel Mounting Bracket

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the bolts and the spare wheel and tire.
    Torque: 41 lb.ft (55 Nm)
  1. Remove the liftgate trim panel.
    Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Remove the spare wheel mounting bracket nuts.
    Torque: 177 lb.in (20 Nm)

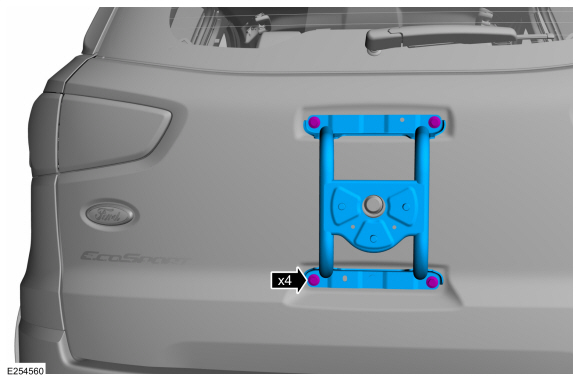

  1. Remove the bolts and the spare wheel mounting bracket.
    Torque: 177 lb.in (20 Nm)

Installation

  1. To install, reverse the removal procedure.
