Ford Ecosport: Rear Suspension - AWD / Removal and Installation - Rear Lower Arm

Special Tool(s) / General Equipment

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire.
   Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

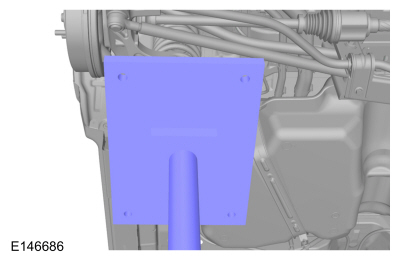

1. Raise the suspension to curb height.
   Use the General Equipment: Transmission Jack

1. NOTICE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

   NOTICE: Make sure that the ball joint ball does not rotate.

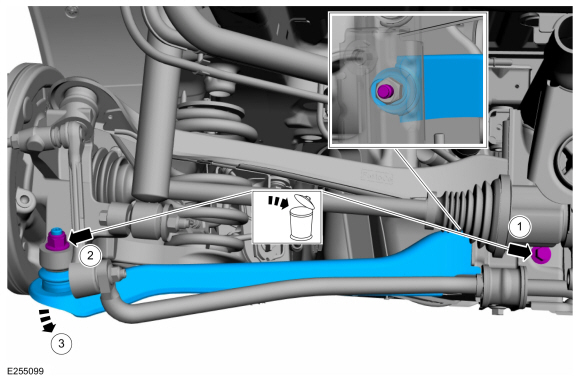

   1. Remove and discard the rear lower arm-to-subframe bolt.

   2. Remove and discard the rear lower arm-to-wheel knuckle nut.

   3. Using special service tool disconnect the rear lower arm from wheel knuckle and remove the rear lower arm.


Installation

1. To install, reverse the removal procedure.


1. NOTICE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

   NOTICE: Make sure that the ball joint ball does not rotate.

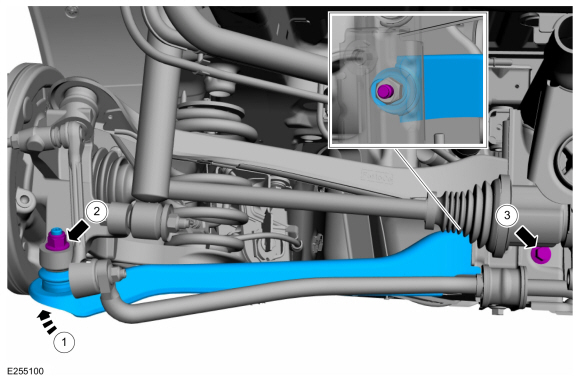

   1. Install the rear lower arm-to-subframe and press the rear lower arm to wheel knuckle.

   2. Install the rear lower arm-to-wheel knuckle new nut.
      Torque:
        Stage 1:  177 lb.in (20 Nm)
        Stage 2:  90°
   3. Install the rear lower arm-to-subframe new bolt.
      Torque:
        Stage 1:  41 lb.ft (55 Nm)
        Stage 2:  90°

1. Check and if necessary adjust rear toe.
   Refer to: Rear Toe Adjustment - AWD (204-00 Suspension System - General Information, General Procedures).
