Ford Ecosport: Seatbelt Systems / Removal and Installation - Rear Center Seatbelt Retractor
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the LH rear seat backrest.
Refer to: Rear Seat Backrest (501-10B Rear Seats, Removal and Installation).
-
Remove the rear LH seatbelt buckle.
-

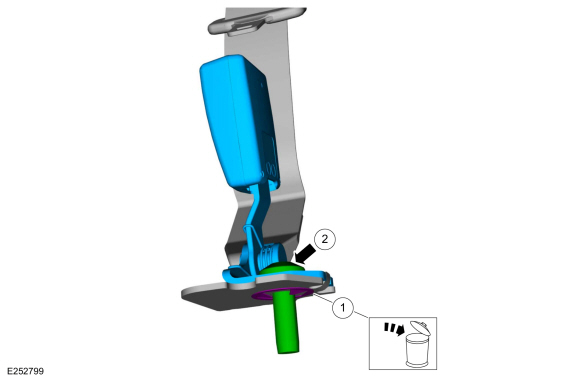

Remove and discard the bolt retainer.
-
Remove the bolt.
-

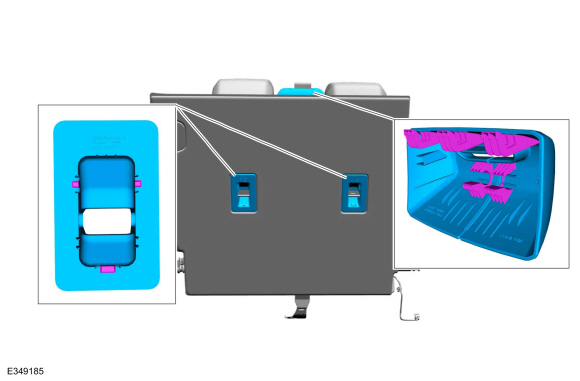

Remove the child safety seat tether anchor bezel(s) and the rear center seatbelt guide bezel.
-
If equipped.
Remove the rear seat armrest.
Refer to: Rear Seat Armrest (501-10B Rear Seats, Removal and Installation).
-
-

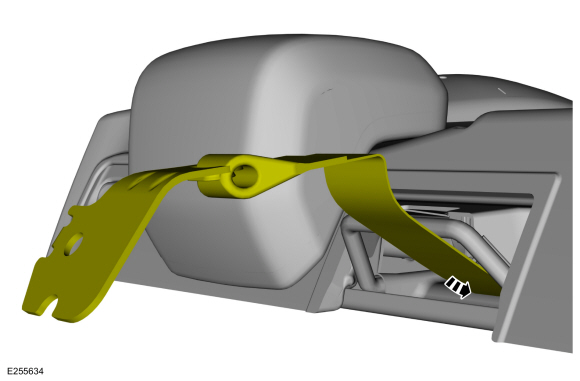

Release the J-clip.
-

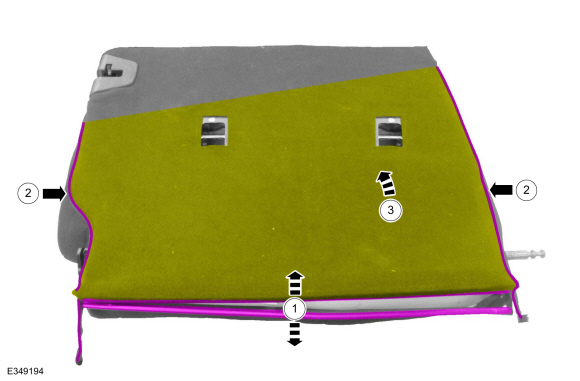

Unzip the backrest cover.
-
Position the rear seat backrest cover to access the rear center seatbelt retractor bolt.
-
NOTE:
The rear seat backrest cover is shown removed for clarity.

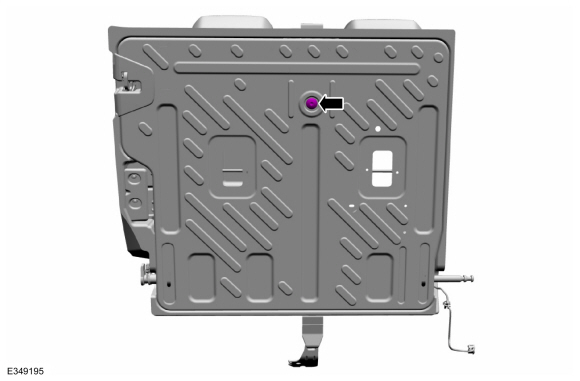

Remove the rear center seatbelt retractor bolt.
Torque:
30 lb.ft (40 Nm)
-
-
On both sides.
Position the rear seat backrest cover to access the rear center seatbelt retractor.
-
If equipped.

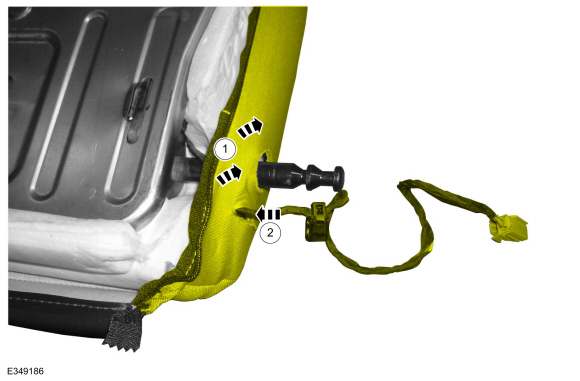

Route the wiring harness through the rear seat backrest cover.
-
Route the rear center seatbelt through the guide.
-
Remove the rear center seatbelt retractor.
Installation
NOTE:
During installation, make sure the seatbelt webbing is not
twisted and the seatbelts and buckles are accessible to the occupants.
-
To install, reverse the removal procedure.
-
Check the seatbelt system for correct operation.
Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
