Ford Ecosport: Exterior Lighting / Removal and Installation - Headlamp Switch

Ford Ecosport 2014-2024 Service and Repair Manual / Lighting / Exterior Lighting / Removal and Installation - Headlamp Switch

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

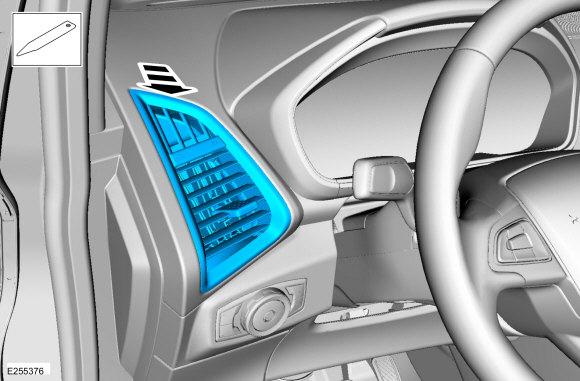

Remove the LH vent.
Use the General Equipment: Interior Trim Remover

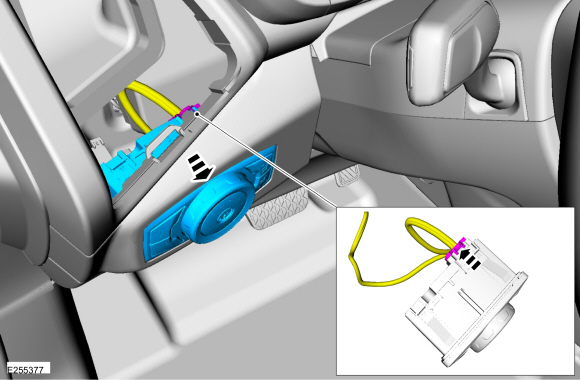

Remove the headlamp switch assembly.
- Disconnect the electrical connector.

Installation

To install, reverse the removal procedure.
