Ford Ecosport: Front End Sheet Metal Repairs / Removal and Installation - Fender Apron Panel Reinforcement
Special Tool(s) /
General Equipment
Resistance Spotwelding Equipment |
Spherical Cutter |
8 mm Drill Bit |
MIG/MAG Welding Equipment |
Spot Weld Drill Bit |
Locking Pliers |
Removal
NOTE:
The fender apron panel reinforcement is made of DP600 class
steel and may be sectioned. The following assumes full component
replacement.
-
Depower the SRS .
Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).
-
Remove the following items:
-
Remove the hood.
Refer to: Hood (501-02 Front End Body Panels, Removal and Installation).
-
Remove the headlamp.
Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).
-
Remove the battery, LH side only.
Refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).
-
Remove the front bumper.
Refer to: Front Bumper (501-19 Bumpers, Removal and Installation).
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
-
Remove the fender.
Refer to: Fender (501-02 Front End Body Panels, Removal and Installation).
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
-
Remove the cowl vent screen and cowl panel.
Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).
Refer to: Cowl Panel (501-02 Front End Body Panels, Removal and Installation).
-
Remove the front sail glass.
Refer to: Fixed Glass (501-11 Glass, Frames and Mechanisms, General Procedures).
-
Restore the vehicle to pre-accident dimensions, if required.
Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
NOTE:
LH side shown, RH side similar.
-

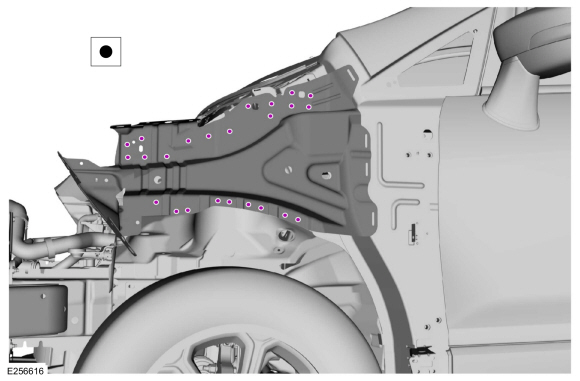

Remove the welds.
Use the General Equipment: Spot Weld Drill Bit
-

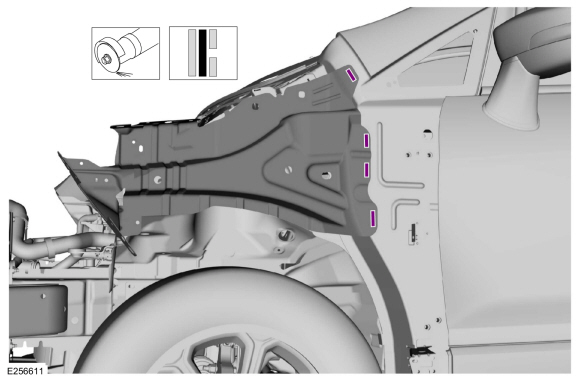

Remove the welds.
Use the General Equipment: Spherical Cutter
-
Open the retaining tabs and remove the fender apron reinforcement outer panel.
Installation
NOTE:
LH side shown, RH side similar.
-

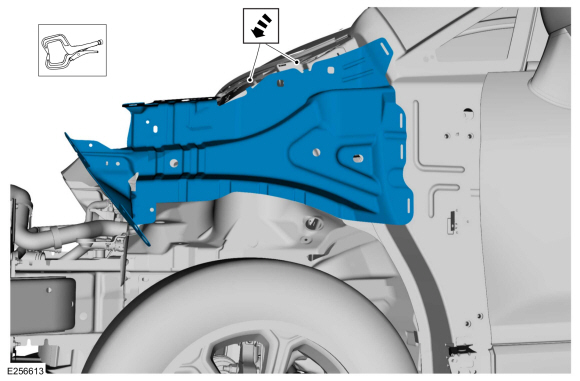

Install, properly position and clamp the panel
Use the General Equipment: Locking Pliers
-
Drill plug weld holes.
Use the General Equipment: 8 mm Drill Bit
-

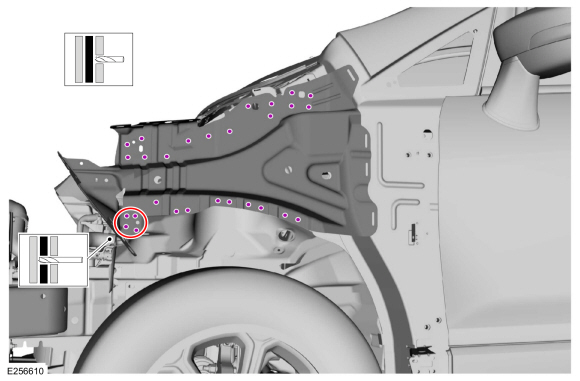

Install the welds.
Use the General Equipment: MIG/MAG Welding Equipment
-
Install the welds
Use the General Equipment: Resistance Spotwelding Equipment
-
Refinish the entire repair using a Ford approved paint system.
-
Restore corrosion protection.
Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).
-
Install the following items:
-
Install the front sail glass.
Refer to: Fixed Glass (501-11 Glass, Frames and Mechanisms, General Procedures).
-
Install the cowl vent screen and cowl panel.
Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).
Refer to: Cowl Panel (501-02 Front End Body Panels, Removal and Installation).
-
Install the battery, LH side only.
Refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).
-
Install the hood.
Refer to: Hood (501-02 Front End Body Panels, Removal and Installation).
-
Install the front bumper.
Refer to: Front Bumper (501-19 Bumpers, Removal and Installation).
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
-
Install the fender.
Refer to: Fender (501-02 Front End Body Panels, Removal and Installation).
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
-
Install the headlamp.
Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).
-
Repower the SRS .
Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
