Ford Ecosport: Climate Control System - General Information / Removal and Installation - Climate Control Housing

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the instrument panel upper section.
    Refer to: Instrument Panel Upper Section (501-12 Instrument Panel and Console, Removal and Installation).

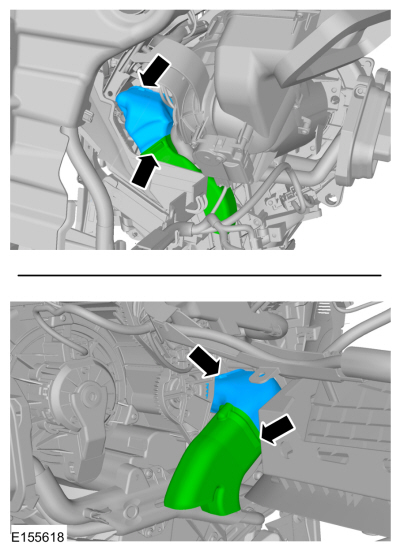

  1. Remove the drivers and passengers footwell ducts.
  1. NOTE: If equipped

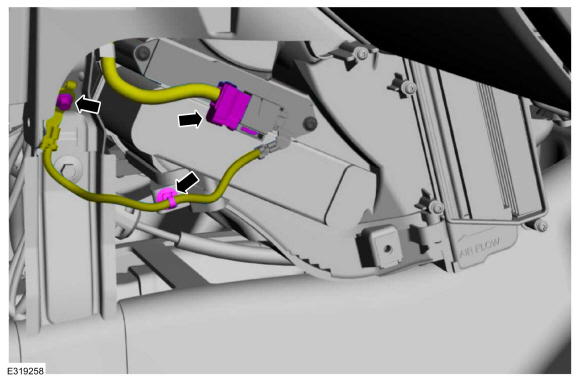

    • Disconnect the electrical connector.
    • Detach the wire harness retainer and remove the ground bolt.
      Torque: 44 lb.in (5 Nm)

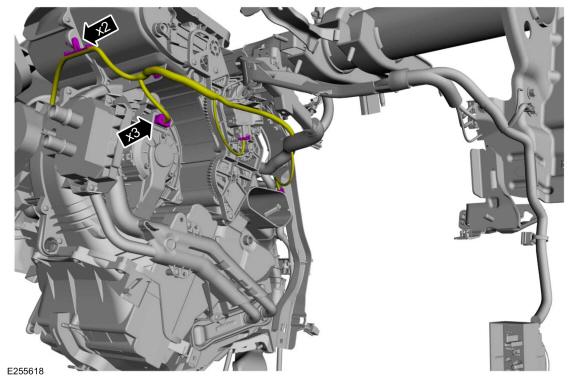

  1. Disconnect the harness retainers and disconnect the electrical connectors.

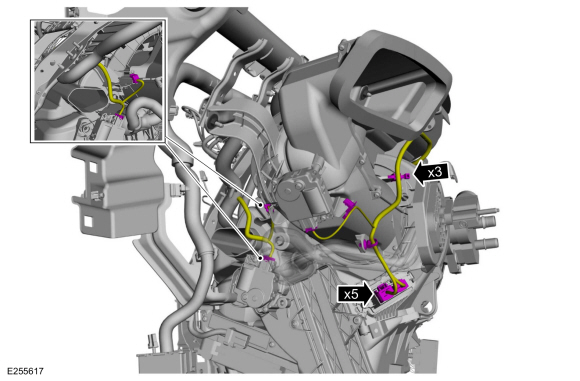

  1. Disconnect the harness retainers and disconnect the electrical connectors.

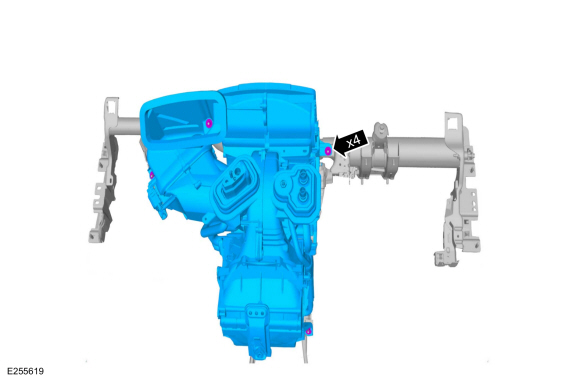

  1. Remove the climate control housing retainers.
    Torque: 53 lb.in (6 Nm)

Installation

  1. To install, reverse the removal procedure.
