Ford Ecosport: Rear Disc Brake / Removal and Installation - Brake Caliper Anchor Plate

Ford Ecosport 2014-2025 Service and Repair Manual / Brake System / Rear Disc Brake / Removal and Installation - Brake Caliper Anchor Plate

Removal

NOTE: Steps in the removal procedure may contain installation details.

  1. Remove the brake pads.
    Refer to: Brake Pads (206-04 Rear Disc Brake, Removal and Installation).

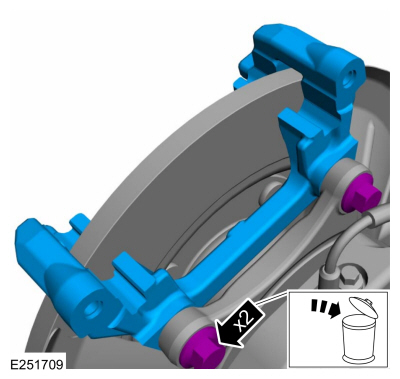

  1. NOTE: Make sure that new bolts are installed.

    Remove the bolts and the brake caliper anchor plate. Discard the bolts.
    Torque: 46 lb.ft (63 Nm)

Installation

  1. To install, reverse the removal procedure.
