Ford Ecosport: Multifunction Electronic Modules / Removal and Installation - Rear Door Module (RDM)
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
If installing a new module, it is not necessary to upload
the module configuration information to the diagnostic scan tool prior
to removing the module. If the RDM is replaced with a part with the same
suffix level, the DDM and PDM will automatically transfer the
respective configuration to the new RDM upon first powering up.
-
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

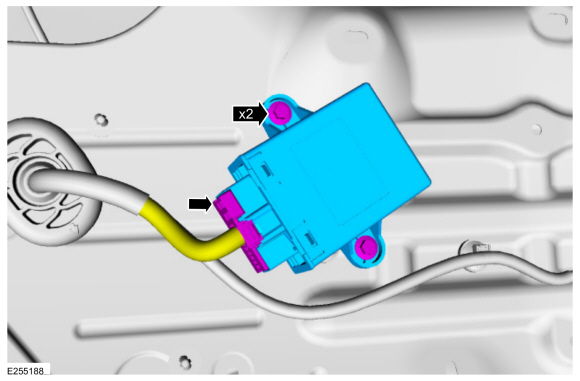

Remove the 2 retainers and the RDM .
-
Disconnect the electrical connector.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
DDM shown, PDM similar.
NOTE:
If installing a new module, it is necessary to
upload the module configuration information to the diagnostic scan tool
prior to removing the module...
