Ford Ecosport: Transfer Case - 6-Speed Automatic Transmission – 6F35 / General Procedures - Transfer Case Draining and Filling
Materials
Name |
Specification |
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A
|
Draining
-
Follow the health and safety precautions.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-
Remove the engine undershield.
-
NOTE:
Be prepared to collect escaping fluid.
Remove the PTU drain plug.
-
Install the PTU drain plug.
Torque:
29 lb.ft (39 Nm)
Filling
-

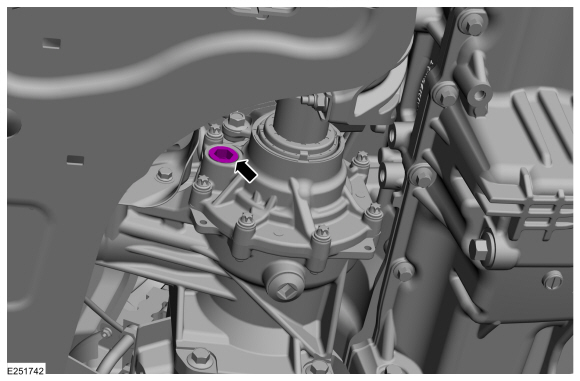

Remove the PTU fill plug.
-
NOTE:
Do not fill to the level of the fill plug, this will lead to filling excess oil.
Refer to: Specifications (308-07B Transfer Case - 6-Speed Automatic Transmission – 6F35, Specifications).
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant
/ XY-75W85-QL
(WSS-M2C942-A)
-
Install the PTU fill plug.
Torque:
44 lb.ft (60 Nm)
-
Install the engine undershield.
-
Torque:
18 lb.in (2 Nm)
-
Torque:
27 lb.in (3 Nm)
Materials
Name
Specification
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear LubricantXY-75W85-QL
WSS-M2C942-A
