Ford Ecosport: Starting System - 2.0L Duratec-HE (129kW/175PS) / General Procedures - Starter Motor Drive Gear and Flywheel Ring Gear Inspection
Activation
-
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
-
Remove the starter motor.
Refer to: Starter Motor (303-06I)
.
-

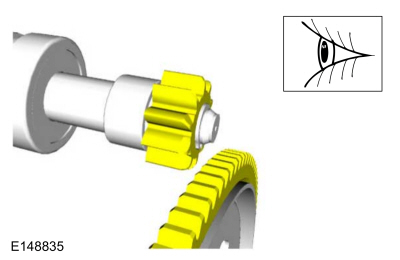

Visual check. Check the wear patterns on the starter
drive gear and the flywheel or flexplate ring gear. If the wear pattern
is normal, install the starter motor.
Refer to: Starter Motor (303-06I)
.
-
If the starter drive gear and the flywheel or flexplate
ring gear are not fully meshing and the gears are scored or damaged,
install a new starter motor.
Refer to: Starter Motor (303-06I)
.
-
If necessary, install a new flywheel or flexplate.
Inspection and Verification
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...
