Ford Ecosport: Automatic Transmission External Controls / Removal and Installation - Selector Lever Knob
Special Tool(s) /
General Equipment
Removal
All vehicles
-

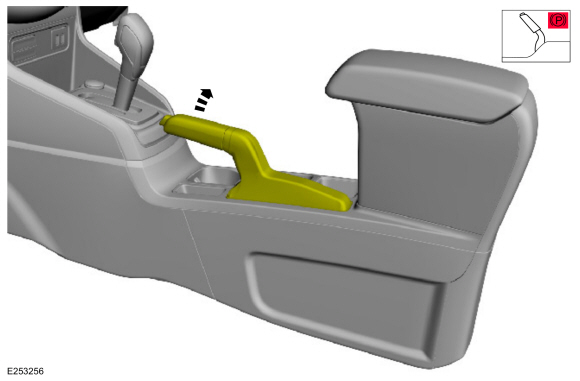

Apply the parking brake.
-

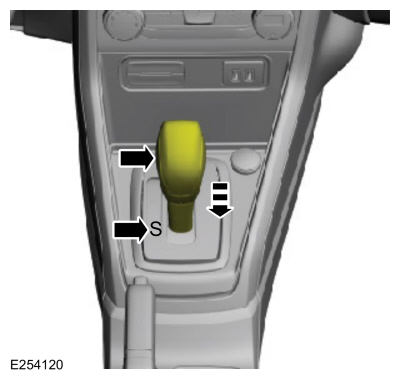

Position the selector lever in S .
Selector lever knobs with a SelectShift® switch
-

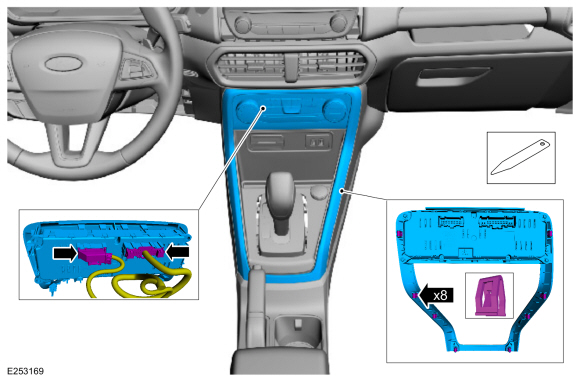

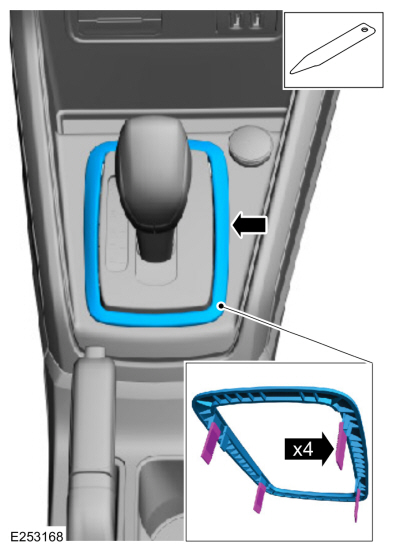

Remove the selector lever bezel trim ring.
Use the General Equipment: Interior Trim Remover
-
Detach the trim ring and the HVAC control module, disconnect the HVAC
control module electrical connectors and remove the trim ring and the
HVAC control module as an assembly.
Use the General Equipment: Interior Trim Remover
-

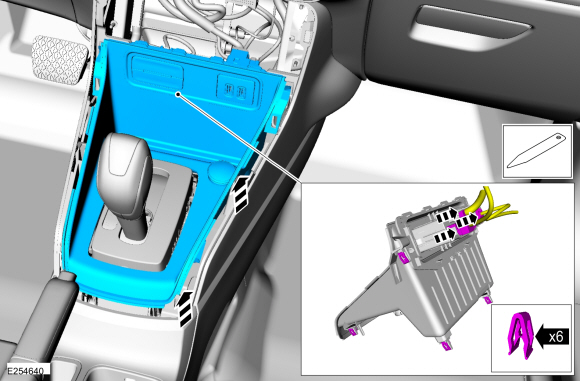

Remove the selector lever finish panel and disconnect the electrical connectors.
Use the General Equipment: Interior Trim Remover
-

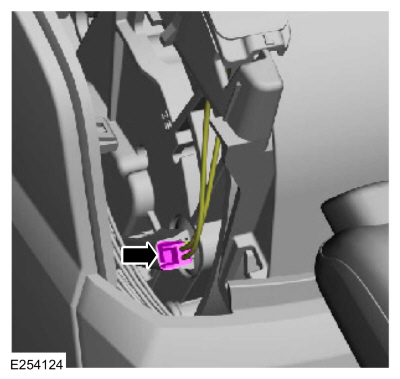

Disconnect the LED strip electrical connector.
-

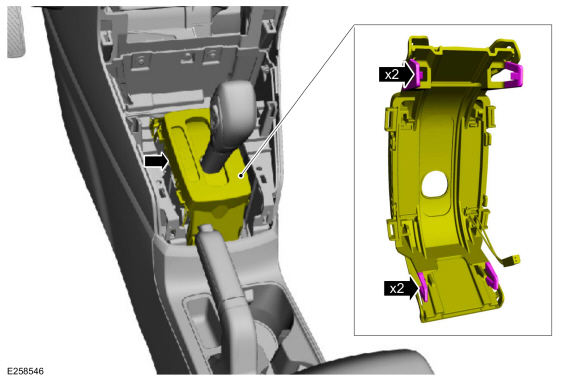

Unsnap and position aside the selector lever bezel.
-

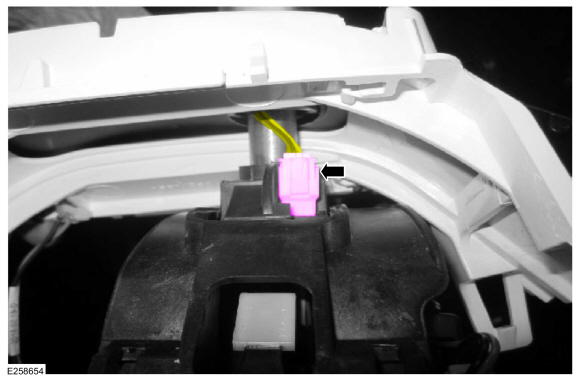

Disconnect the SelectShift® switch electrical connector.
All vehicles
-

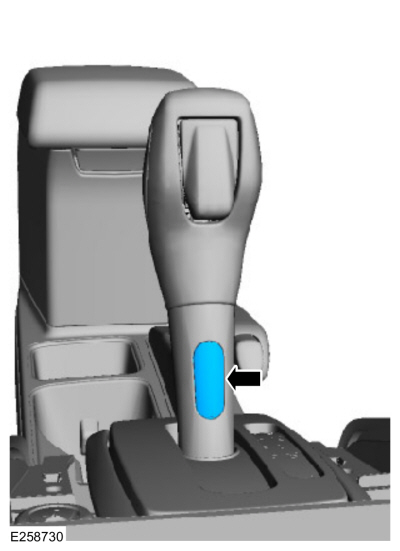

Remove the selector lever knob screw cover.
-

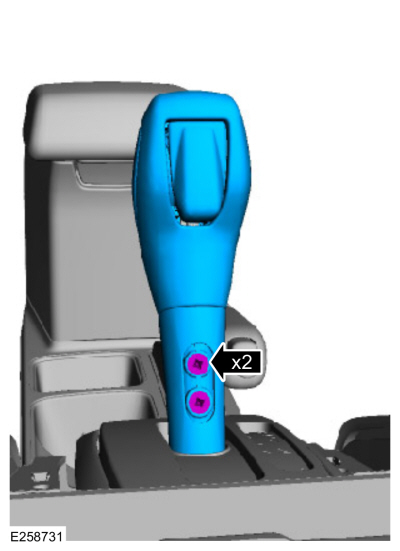

Remove the screws and the selector lever knob.
Installation
-
To install, reverse the removal procedure.
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
All vehicles
Remove the selector lever knob...
Removal
With the vehicle in N , position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation)...
Other information:
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the steering column shrouds.
Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).
Vehicles With: Driver Knee Airbag
Remove the driver knee airbag...
