Ford Ecosport: Glass, Frames and Mechanisms / Removal and Installation - Rear Door Window Glass

Removal

NOTE: LH side shown, RH side similar.

  1. Remove the rear door glass run and bracket.
    Refer to: Rear Door Glass Run and Bracket (501-11 Glass, Frames and Mechanisms, Removal and Installation).
  1. Remove the rear door glass top run.
    Refer to: Rear Door Glass Top Run (501-11 Glass, Frames and Mechanisms, Removal and Installation).
  1. Remove the rear door outer belt moulding.

  1. Release the rear door window glass from the rear door window regulator.
    1. Connect the rear door window control switch.
    1. Raise the rear door window glass to the half up position.
    1. Disconnect the rear door window control switch.
    1. Release the rear door window glass retaining clip.

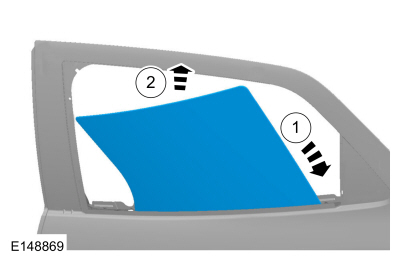

  1. Remove the rear door window glass
    1. NOTE: For the RH side, rotate the rear door window glass 90 degrees counter clockwise .

      Rotate the rear door window glass clockwise 90 degrees.
    1. Remove the rear door window glass

Installation

  1. To install, reverse the removal procedure.
  1. If the door is equipped with one touch up/down.
    Carry out the power door window initialization.
    Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
