Ford Ecosport: Glass, Frames and Mechanisms / Removal and Installation - Rear Door Glass Top Run
Removal
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the rear door window control switch.
Refer to: Rear Door Window Control Switch (501-11 Glass, Frames and Mechanisms, Removal and Installation).
-
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

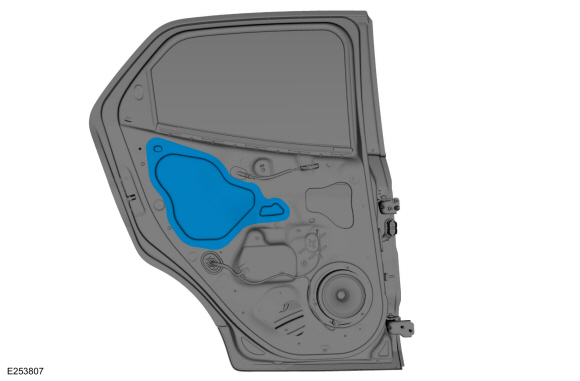

Remove the rear door watershield.
-

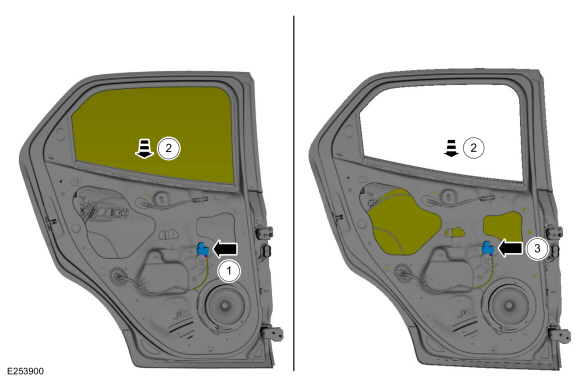

Lower the rear door window glass to the full down position.
-
Connect the rear door window control switch.
-
Lower the rear door window glass to the full down position.
-
Remove the rear door window control switch.
-

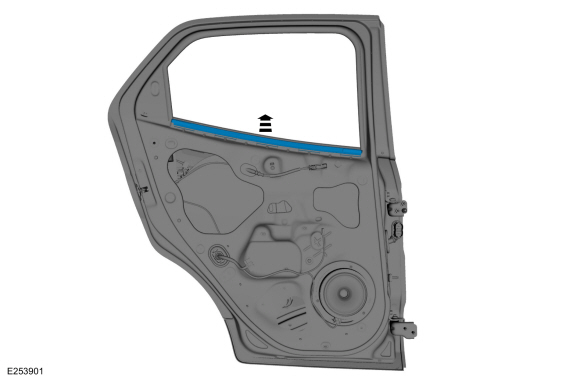

Remove the rear door inner belt moulding.
-

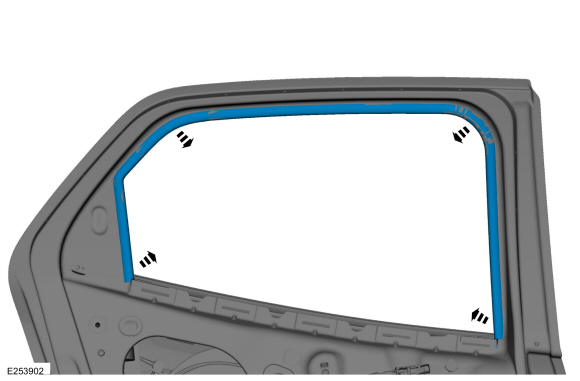

Remove the rear door glass top run.
Installation
-
To install, reverse the removal procedure.
-
If the door is equipped with one touch up/down.
Carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
Remove the rear door trim panel...
Removal
NOTE:
LH side shown, RH side similar.
Remove the rear door glass run and bracket.
Refer to: Rear Door Glass Run and Bracket (501-11 Glass, Frames and Mechanisms, Removal and Installation)...
