Ford Ecosport: Exhaust System - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Muffler and Tailpipe - LHD 4WD
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-

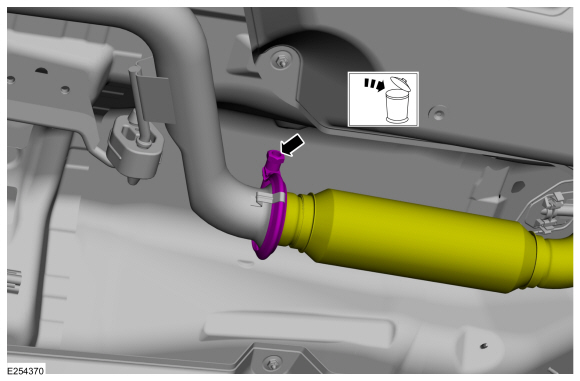

Remove and discard the muffler and catalytic converter flange clamp.
-

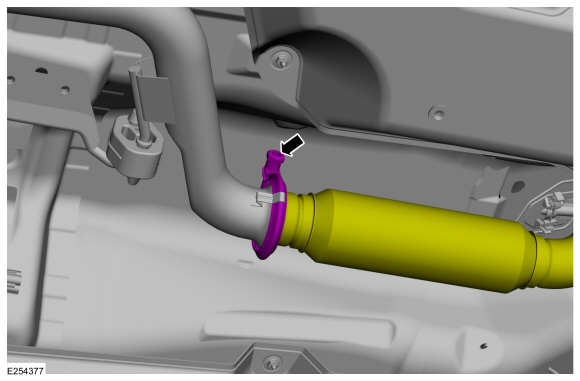

Remove and discard the muffler and tailpipe flange clamp.
-

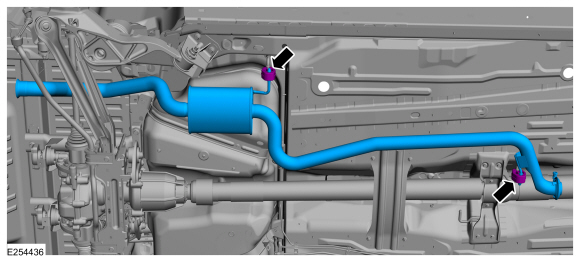

Detach the exhaust isolators. Remove the rear pipe.
-

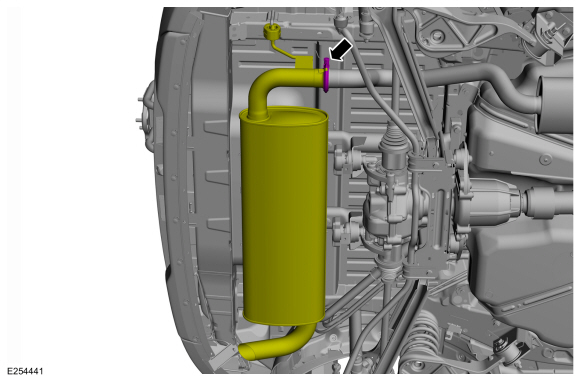

Detach the exhaust isolators. Remove the muffler front pipe.
Installation
-
Clean all exhaust connections before reassembly.
-

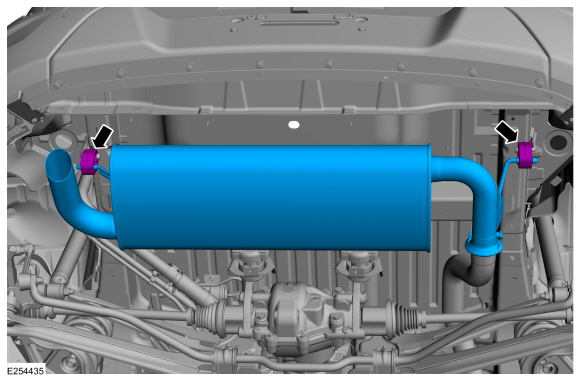

Install the new muffler and attach the exhaust isolators.
-
Install the rear pipe and attach the exhaust isolator.
-
Install tailpipe flange clamp.
Torque:
17 lb.ft (23 Nm)
-
Position the pipe and install the new catalytic converter flange clamp.
Torque:
17 lb.ft (23 Nm)
-
Check the exhaust system for leaks.
