Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

Remove the hood.
Refer to: Hood (501-02 Front End Body Panels, Removal and Installation).

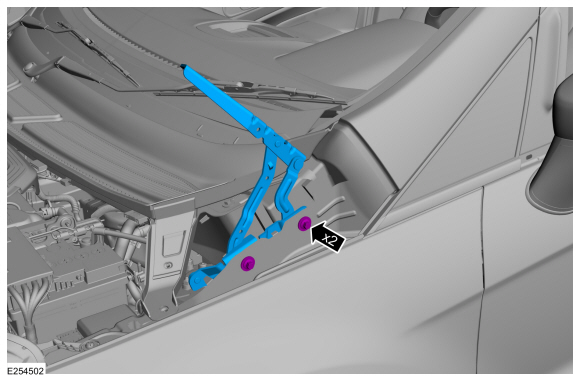

Remove the bolts and the hood hinge.
Torque: 133 lb.in (15 Nm)

Installation

To install, reverse the removal procedure.
