Ford Ecosport: Anti-Lock Brake System (ABS) and Stability Control / Removal and Installation - Front Wheel Speed Sensor
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Note the position of the front wheel speed sensor before removal.
-
Remove the wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
-

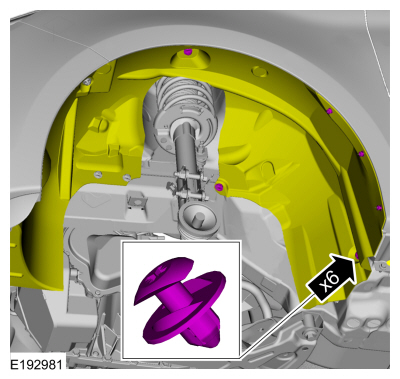

Remove the retainers and pull the fender splash shield
back to access the wheel speed sensor electrical connector.
-

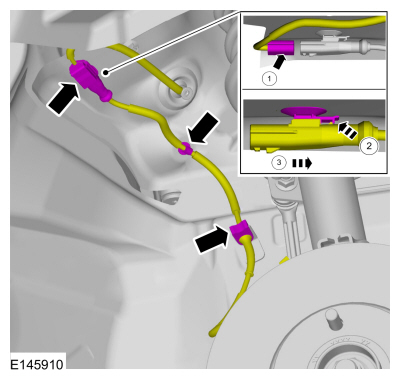

Disconnect the electrical connector and detach the wiring retainers.
-
NOTICE:
Make sure that the area around the component is clean and free of foreign material.
Remove the bolt, detach the wiring retainers and remove the front wheel speed sensor.
Installation
-
NOTE:
Make sure that this component is installed to the
noted removal position and make sure the alignment line is not twisted.
To install, reverse the removal procedure.
