Ford Ecosport: Information and Entertainment System - General Information / Removal and Installation - Front Door Speaker

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the front door trim panel.
    Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

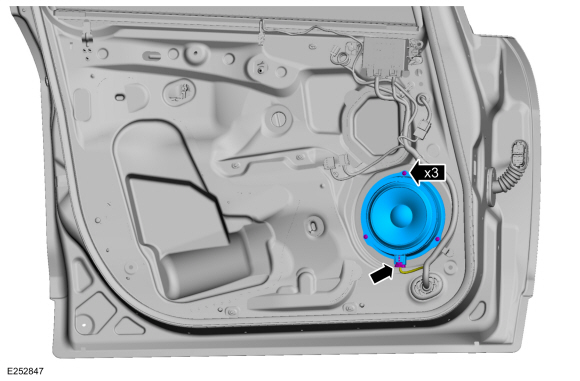

  1. Disconnect the electrical connector, remove the screws and the front door speaker.

Installation

  1. To install, reverse the removal procedure.
