Ford Ecosport: Handles, Locks, Latches and Entry Systems / Removal and Installation - Exterior Front Door Handle Reinforcement
Removal
NOTE:
LH side shown, RH side similar.
-
Remove the front door latch.
Refer to: Front Door Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
-

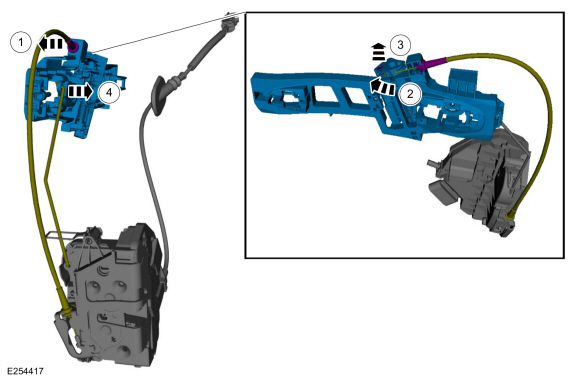

Remove the front door latch from the exterior front door handle reinforcement.
-
Disconnect the cable from the mounting bracket.
-
Route the cable out of the exterior front door handle reinforcement.
-
Remove the cable end from the exterior front door handle reinforcement.
-
Remove lock rod from the exterior front door handle reinforcement.
Installation
-
To install, reverse the removal procedure.
-
If the door is equipped with one touch up/down.
Carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
