Ford Ecosport: Evaporative Emissions - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Evaporative Emission Canister Vent Solenoid
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the EVAP canister.
Refer to: Evaporative Emission Canister (303-13A Evaporative Emissions - 1.0L EcoBoost (92kW/125PS), Removal and Installation).
-

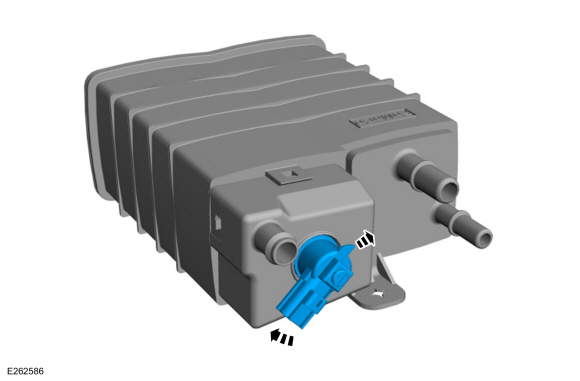

Remove the EVAP canister solenoid.
Installation
-
To install, reverse the removal procedure.
