Ford Ecosport: Supplemental Climate Control / Removal and Installation - Electric Booster Heater
Ford Ecosport 2014-2025 Service and Repair Manual / Climate Control System / Supplemental Climate Control / Removal and Installation - Electric Booster Heater
Special Tool(s) / General Equipment
| Interior Trim Remover |
Removal
NOTE: Removal steps in this procedure may installation details.
-
Remove the floor console upper trim panel.
-
Disconnect the electrical connectors.
Use the General Equipment: Interior Trim Remover
-
Disconnect the electrical connectors.
 |
-

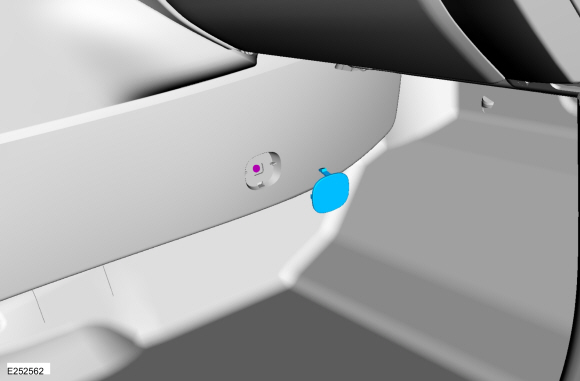

Remove the RH cover and bolt.
Torque: 27 lb.in (3 Nm)
 |
-
Remove the RH floor console front trim panel.
 |
-
-
Disconnect the electrical connector.
-
Detach the wire harness retainer and remove the ground bolt.
Torque: 44 lb.in (5 Nm)
-
Remove the retainers and the electric booster heater.
-
Disconnect the electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
