Ford Ecosport: Climate Control System - General Information / Removal and Installation - Blower Motor Speed Control

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

Vehicles with automatic transmission

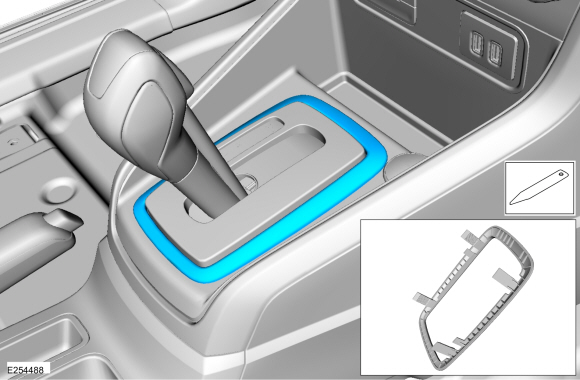

  1. Remove the selector lever trim panel.
    Use the General Equipment: Interior Trim Remover

All vehicles

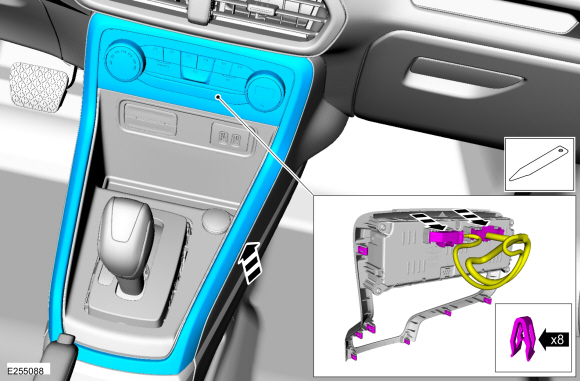

  1. Remove the floor console upper trim panel.
    • Disconnect the electrical connectors.
      Use the General Equipment: Interior Trim Remover

Vehicles with automatic transmission


  1. Remove the selector lever finish panel.
    • Disconnect the electrical connectors.
      Use the General Equipment: Interior Trim Remover

Vehicles with manual transmission

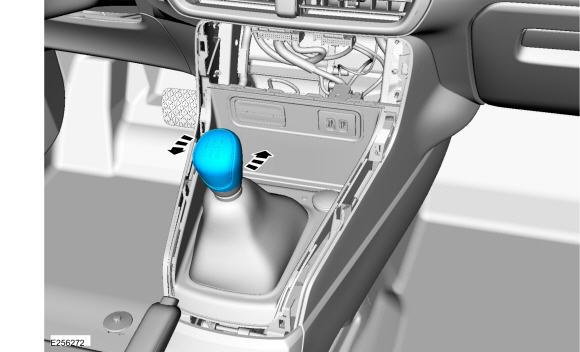

  1. Remove the selector lever knob.

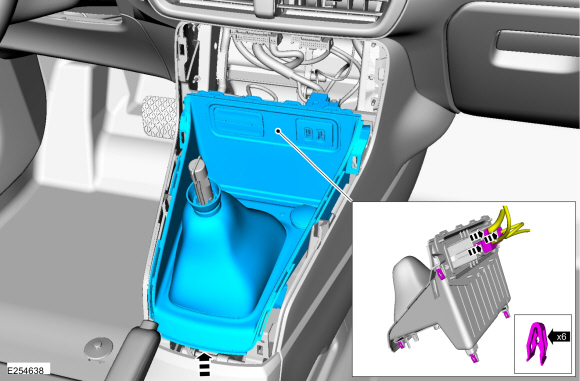

  1. Remove the selector lever finish panel.
    • Disconnect the electrical connectors.

All vehicles

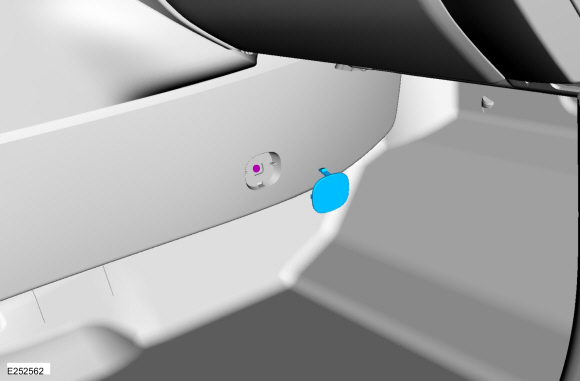

  1. Remove the RH cover and bolt.
    Torque: 27 lb.in (3 Nm)

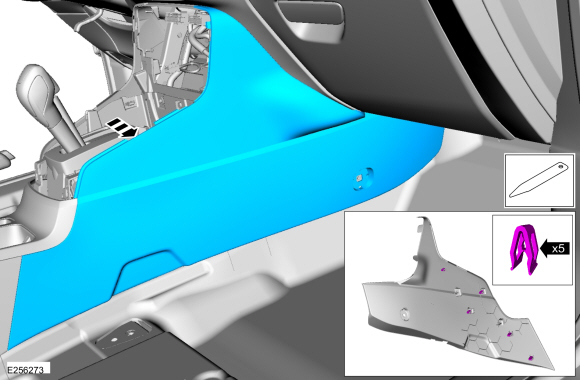

  1. Remove the RH floor console front trim panel.

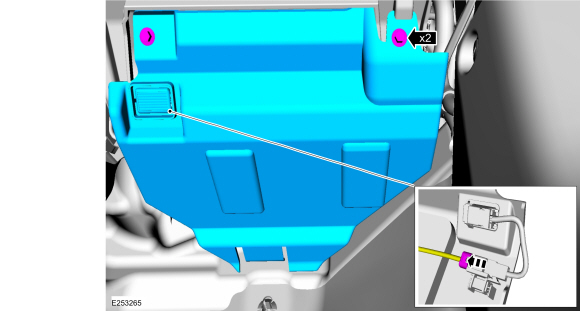

  1. Remove the bolts and the RH hush panel.
    • Disconnect the electrical connector.

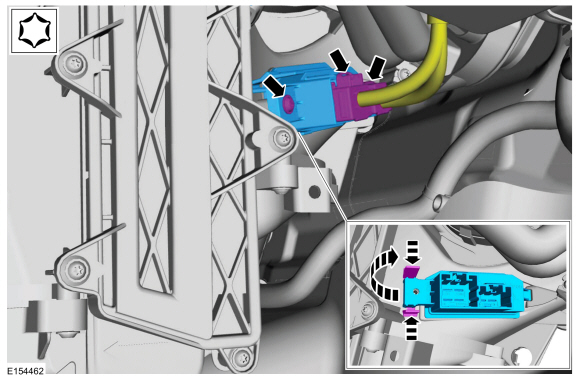

  1. Remove the retainer, disconnect the electrical connector and remove the blower motor speed control.

Installation

  1. To install, reverse the removal procedure.
