Ford Ecosport: Climate Control System - General Information / Removal and Installation - Cabin Air Filter
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

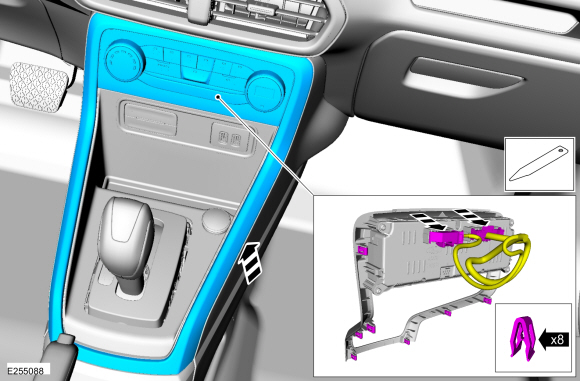

Remove the floor console upper trim panel.
-
Disconnect the electrical connectors.
Use the General Equipment: Interior Trim Remover
-

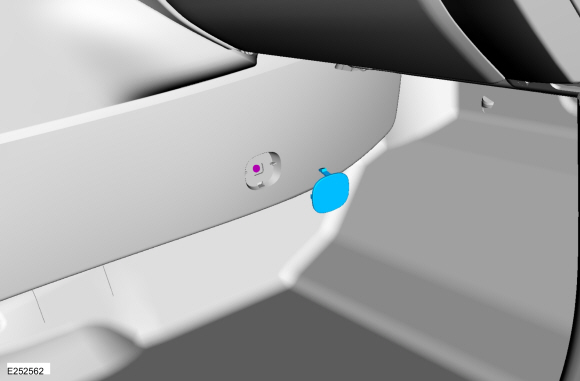

Remove the RH cover and bolt.
Torque:
27 lb.in (3 Nm)
-

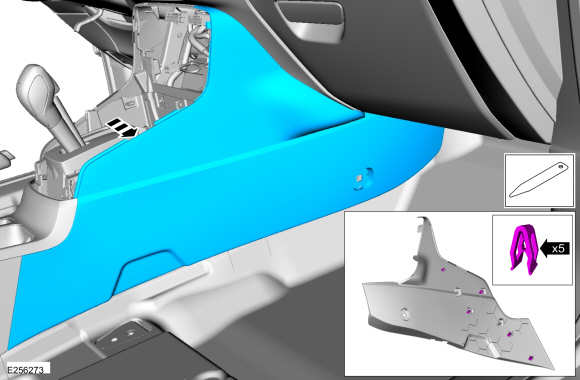

Remove the RH floor console front trim panel.
-

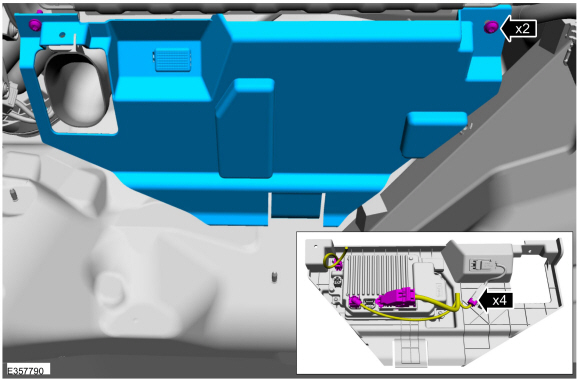

Remove the screws and the RH hush panel.
-
Disconnect the electrical connectors.
-

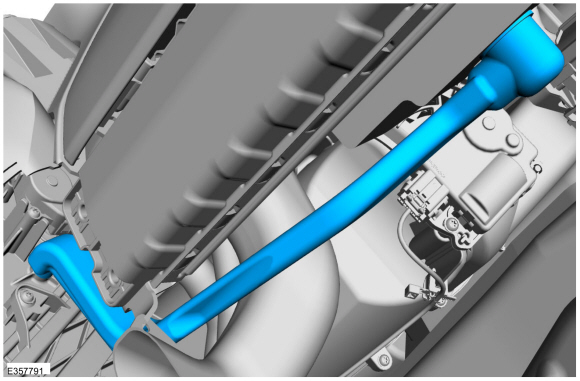

Remove the HVAC glove compartment duct.
-
NOTE:
Bolt located behind the glove compatment.

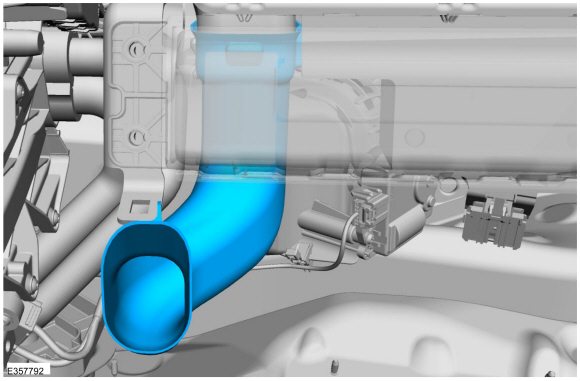

Remove the bolt and the RH side floor duct.
-
NOTE:
Some vehicles may only have 4 retainers in this location.

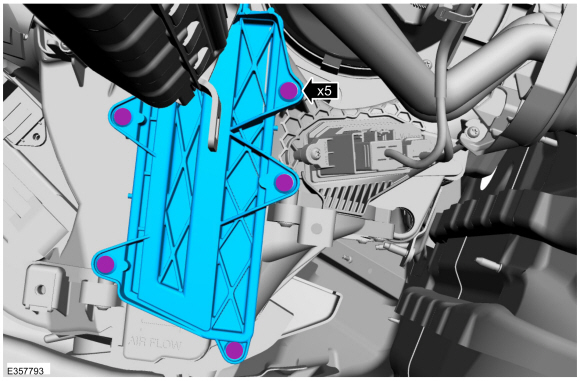

Remove the retainers and remove the cabin air filter cover.
-

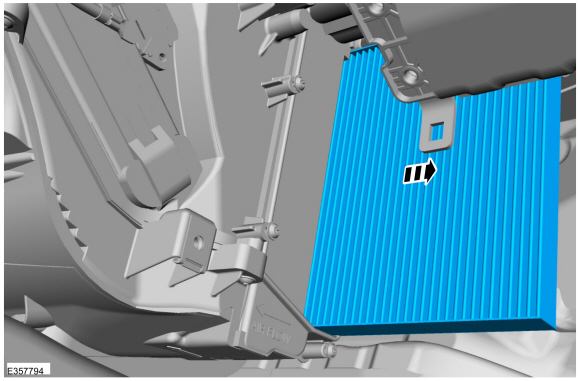

Remove the cabin air filter.
Installation
-
To install, reverse the removal procedure.
