Removal

  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Using a diagnostic scan tool, begin the PMI process for the TCU following the on-screen instructions.

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the RH front seat.
    Refer to: Front Seat (501-10A Front Seats, Removal and Installation).

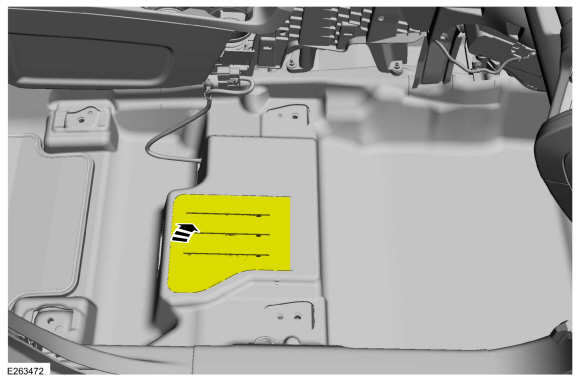

  1. Position aside the carpet flap.
  1. Disconnect the antenna snd electrical connectors.

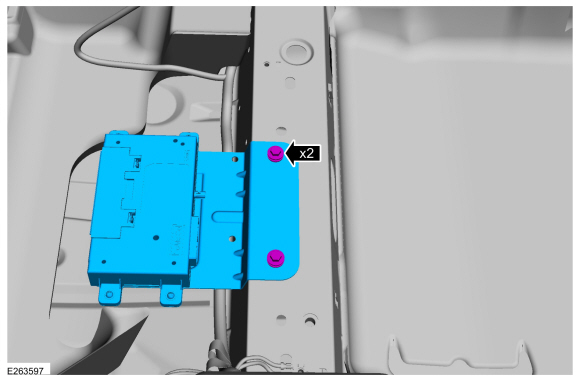

  1. Remove the bolts and the TCU .

Installation

  1. To install, reverse the removal procedure.

  1. NOTE: This step is only necessary if replacing the TCU .

    Using a diagnostic scan tool, complete the PMI process for the TCU following the on-screen instructions.
