Ford Ecosport: Automatic Transmission External Controls / Removal and Installation - Selector Lever
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the floor console.
Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
-
Detach the wiring harness retainers from the selector lever.
-
Disconnect the selector lever electrical connector.
-
NOTICE:
Do not pull or pry on the selector lever cable or
the selector lever cable end may be damaged. Use a screwdriver and turn
the screwdriver as shown to pry the cable end off the post as close to
the post as possible.
Using a screwdriver, pry the selector lever cable end from the selector lever mechanism.
-
Remove the selector lever cable retaining clip bolt.
Torque:
62 lb.in (7 Nm)
-
Disconnect the selector lever cable clip and the selector lever cable from the selector lever.
-

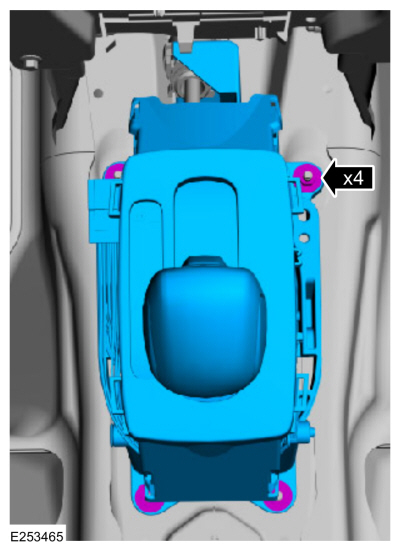

Remove the nuts and the selector lever.
Torque:
80 lb.in (9 Nm)
Installation
-
To install, reverse the removal procedure.
-
Adjust the selector lever cable.
Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic
Transmission – 6F15 (307-05 Automatic Transmission External Controls,
General Procedures).
Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic
Transmission – 6F35 (307-05 Automatic Transmission External Controls,
General Procedures).
