Ford Ecosport: Exterior Trim and Ornamentation / Removal and Installation - Rocker Panel Moulding
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-
Remove the front fender moulding.
Refer to: Front Fender Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
-

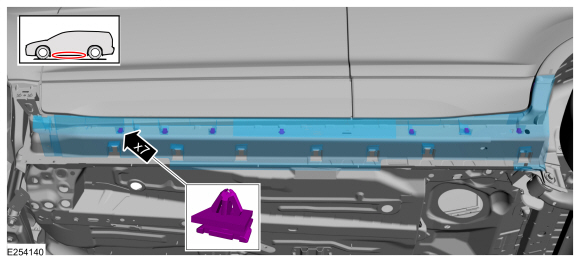

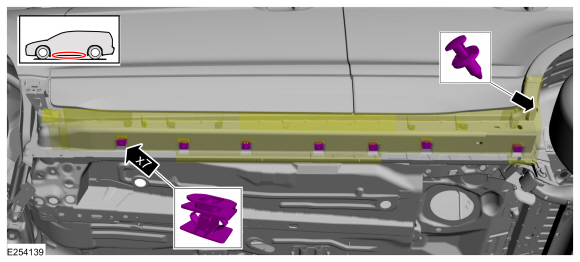

Remove the pushpin retainer and release the clips on the underside of the rocker panel.
-
NOTICE:
Only use moderate force.
Using a non-marring trim removal tool, disengage the retainer clips and remove the rocker panel moulding.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
Disengage the pushpin and the clips, position aside the rocker panel moulding...
Removal
NOTE:
LH side shown, RH side similar.
Remove and discard the roof moulding.
Installation
NOTE:
Make sure that a new component is installed...
