Ford Ecosport: Rear Seats / Removal and Installation - Rear Seat Backrest Cover
Special Tool(s) /
General Equipment
Removal
NOTE:
60 percent rear seat backrest shown, 40 percent similar.
-
If equipped.
Remove the rear seat armrest.
Refer to: Rear Seat Armrest (501-10B Rear Seats, Removal and Installation).
-
Remove the rear seat backrest.
Refer to: Rear Seat Backrest (501-10B Rear Seats, Removal and Installation).
-
-

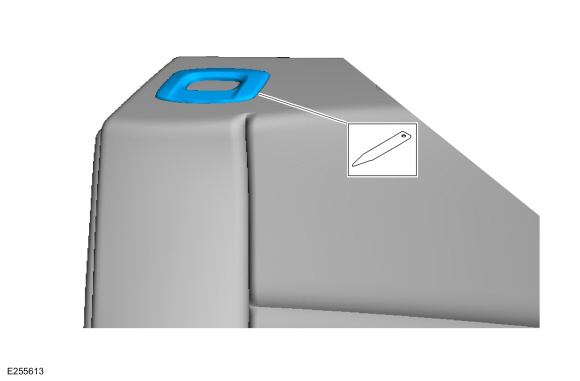

Remove the child safety seat tether anchor bezel.
-
Remove the center seatbelt guide bezel.
-
Remove the rear head restraint guide sleeves.
Refer to: Rear Head Restraint Guide Sleeve (501-10B Rear Seats, Removal and Installation).
-
-
Release the J-clip.
-
Unzip the backrest cover.
-
Position the rear seat backrest cover up.
-
On both sides.
Position the rear seat backrest cover over the frame guide.
-
Remove the second row seat side airbag.
Refer to: Second Row Seat Side Airbag (501-20B Supplemental Restraint System, Removal and Installation).
-

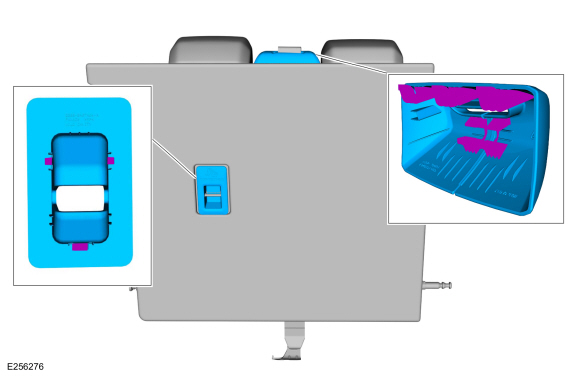

Remove the rear seat backrest latch bezel.
-
Remove the rear seat backrest release trim bezel.
-
NOTE:
Follow the unique instructions or graphics for this step in installation.
Remove the rear seat backrest cover.
-
Invert the rear seat backrest cover.
-
Remove the hog rings.
Installation
-
To install, reverse the removal procedure.
-
Use the General Equipment: Hog Ring Plier
