Removal

NOTE: Removal steps in this procedure may contain installation details.

Liftgate reflector

NOTE: LH rear lamp assembly shown. RH rear lamp assembly similar.

  1. Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

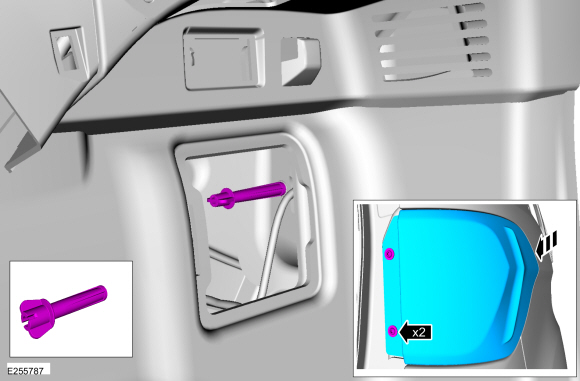

  1. Release the retainers and remove the liftgate reflector.

Rear lamp assembly

NOTE: RH rear lamp assembly.

  1. Open the RH access cover.
  1. Remove the nut, two screws and the RH rear lamp assembly.
  1. Disconnect the electrical connector.

NOTE: LH rear lamp assembly.

  1. Open the LH access cover.
  1. Remove the nuts, and the LH rear lamp assembly.
  1. Disconnect the electrical connector.

Installation

  1. To install, reverse the removal procedure.
