Ford Ecosport: Glass, Frames and Mechanisms / Removal and Installation - Rear Door Window Control Switch
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

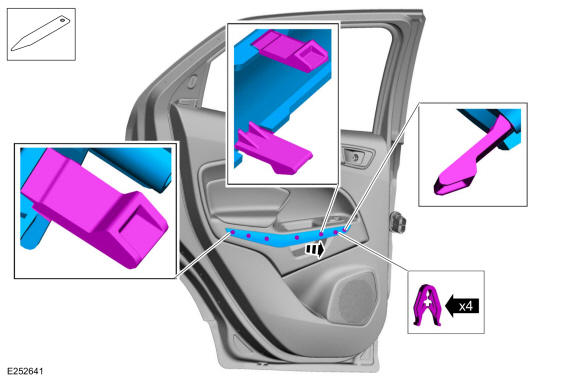

Release the clips and the tabs and remove the rear door armrest side trim panel.
Use the General Equipment: Interior Trim Remover
-

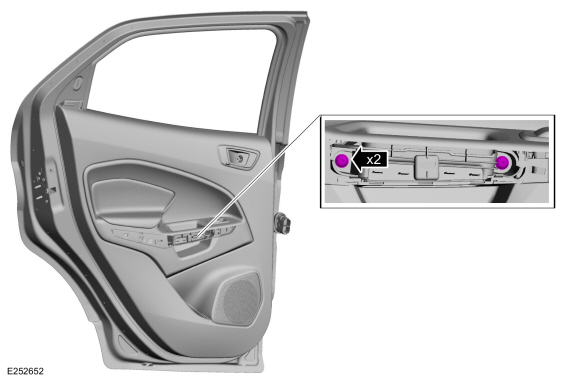

Remove the rear door trim panel screws.
-

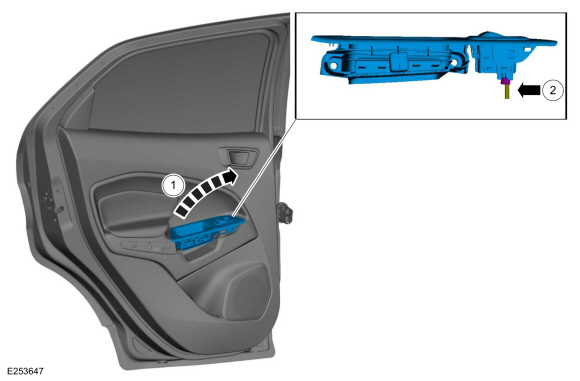

Remove the rear door window control switch and bezel as an assembly.
-
Release the clips.
-
Disconnect the electrical connector.
-
NOTE:
This step is only necessary when installing a new component.

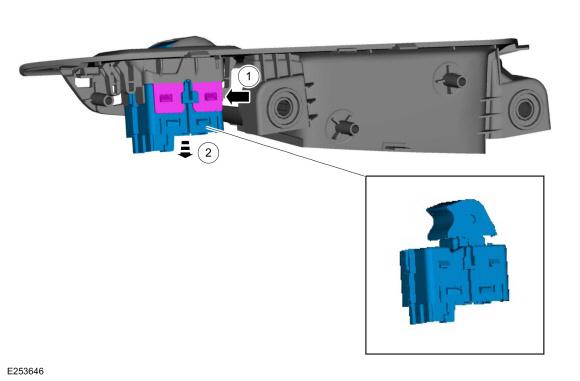

Remove the rear door window control switch.
-
Release the rear door window control switch retaining clips.
-
Remove the rear door window control switch from the bezel.
Installation
-
To install, reverse the removal procedure.
