Ford Ecosport: Exterior Trim and Ornamentation / Removal and Installation - Rear Door Moulding
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-
NOTICE:
Only use moderate force.

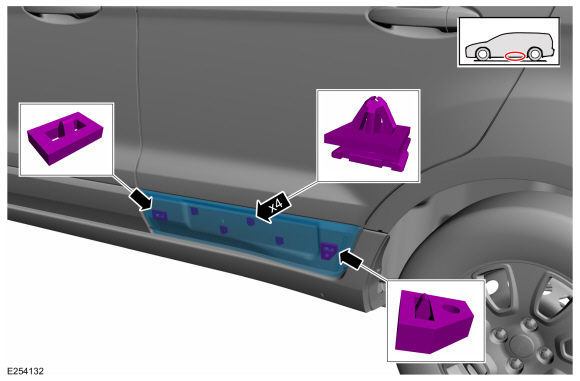

Using a non-marring trim removal tool, disengage the retainer clips, release adhesive tape and remove moulding.
Installation
-
To install, reverse the removal procedure.
