Ford Ecosport: Wipers and Washers / Removal and Installation - Rain Sensor
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

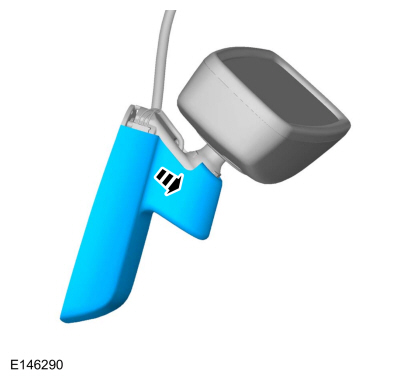

Remove the rearward trim cover.
-

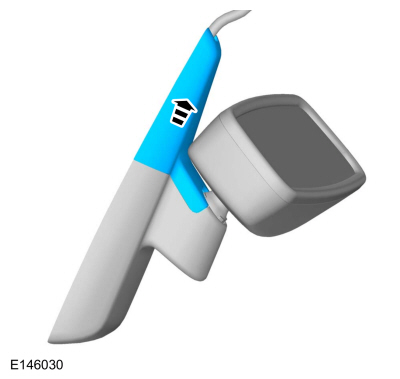

Remove the forward trim cover.
-

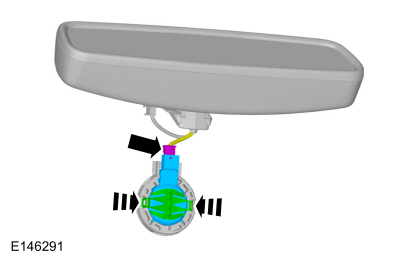

Disconnect the electrical connector, release the retainers and remove the rain sensor.
Installation
-
WARNING:
Make sure that the mating faces are clean and free of foreign material.
To install, reverse the removal procedure.
Refer to Wiring Diagrams Cell 81 for schematic and connector information.
