Ford Ecosport: Climate Control System - General Information / Removal and Installation - In-Vehicle Temperature Sensor

Ford Ecosport 2014-2024 Service and Repair Manual / Climate Control System / Climate Control System - General Information / Removal and Installation - In-Vehicle Temperature Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the steering column shrouds.
    Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

Vehicles With: Driver Knee Airbag

  1. Remove the driver knee airbag.
    Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

All vehicles

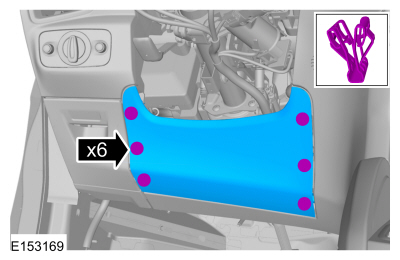

  1. Remove the hush panel.
  1. Disconnect and remove the in-vehicle temperature sensor.

Installation

  1. To install, reverse the removal procedure.
