Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the climate control housing.
Refer to: Climate Control Housing (412-00 Climate Control System - General Information, Removal and Installation).
-

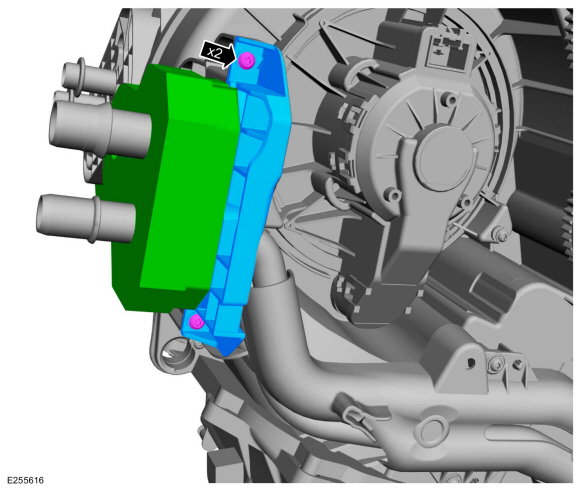

Remove the climate control housing foam seal, remove the retainers and the heater core tube bracket.
 |
-

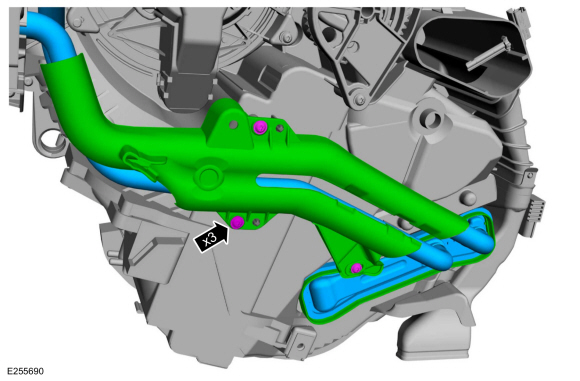

Remove the reainers, the heater core tube shield and the heater core.
 |
Installation
-
To install, reverse the removal procedure.
