Ford Ecosport: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Removal and Installation - Halfshaft Seal LH

Special Tool(s) / General Equipment

205-153 (T80T-4000-W)
Handle
307-626
Installer, Differential Seal
TKIT-2008ET-FLM
TKIT-2008ET-ROW
Puller
Punch

Removal

  1. Remove the LH halfshaft.

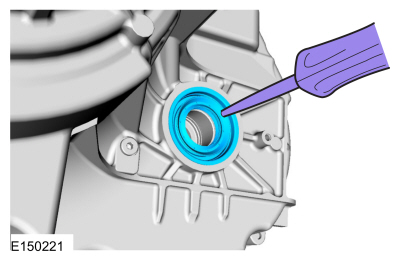

  1. Poke a small hole in the halfshaft seal.
    Use the General Equipment: Punch
  1. Using a dent puller, remove and discard the halfshaft seal.
    Use the General Equipment: Puller

Installation

  1. Install a new halfshaft seal on the special tool.
    Use Special Service Tool: 205-153 (T80T-4000-W)  Handle. , 307-626  Installer, Differential Seal.

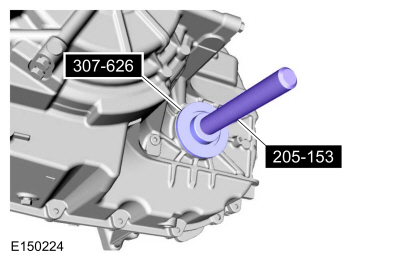

  1. Using the special tool, install the LH halfshaft seal.
    Use Special Service Tool: 205-153 (T80T-4000-W)  Handle. , 307-626  Installer, Differential Seal.
  1. Install the LH halfshaft.
  1. Check the transmission fluid level.
    Refer to: Transmission Fluid Level Check (307-01B Automatic Transmission - 6-Speed Automatic Transmission – 6F35, General Procedures).
