Ford Ecosport: Fuel Tank and Lines - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Fuel Level Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the Fuel Pump and Sender Unit.
    Refer to: Fuel Pump and Sender Unit (310-01C Fuel Tank and Lines - 2.0L Duratec-HE (129kW/175PS), Removal and Installation).

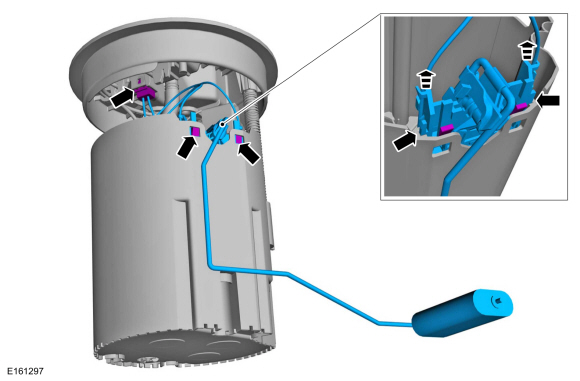

  1. NOTICE: Take extra care not to damage the fuel tank level sensor float and arm.

    • Disconnect the fuel level sender electrical connector.
    • Depress the lock tabs and slide the fuel level sender upwards, and remove the sender from the Fuel Pump assembly.

Installation

  1. To install, reverse the removal procedure.

    Removal and Installation - Fuel Lines

    Removal NOTE: Removal steps in this procedure may contain installation details. With the vehicle in NEUTRAL, position it on a hoist...

    Removal and Installation - Fuel Pump and Sender Unit

    Special Tool(s) / General Equipment 310-123Locking Ring, Fuel TankTKIT-2004J-FTKIT-2005U-LM Removal NOTE: Removal steps in this procedure may contain installation details...
