Ford Ecosport: Exterior Trim and Ornamentation / Removal and Installation - Front Door Upper Moulding
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-

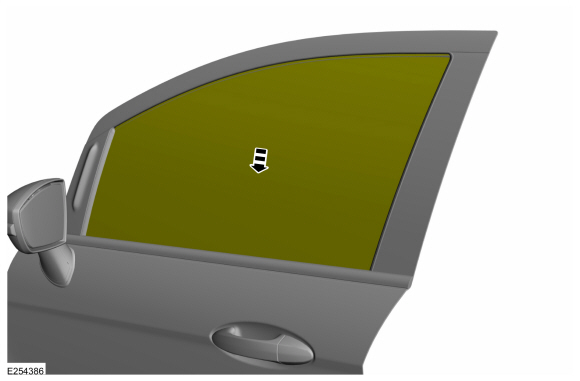

Lower the door window glass.
-

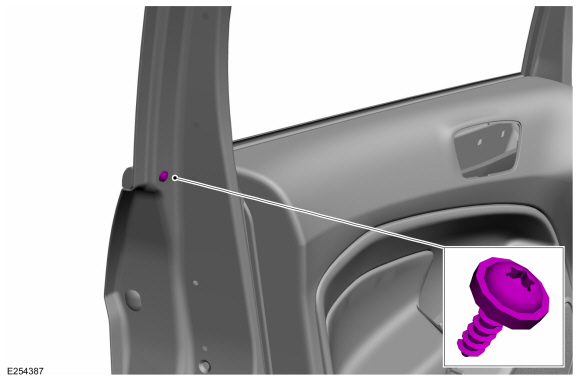

Remove the upper belt moulding screw at rear of the door.
-

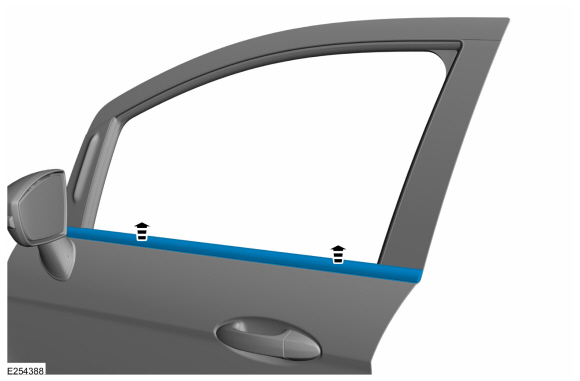

Using a non-marring trim tool, disengage the moulding from the channel in the door and remove the moulding.
-

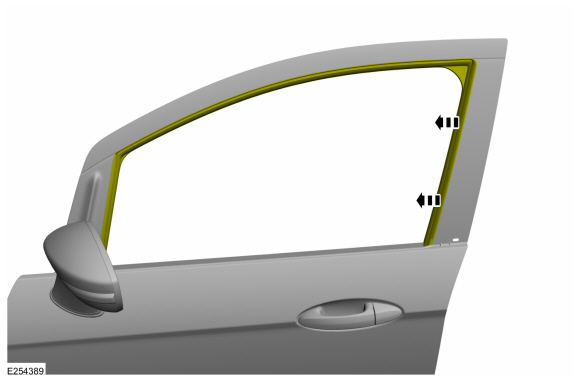

Position aside the glass run weatherstrip.
-

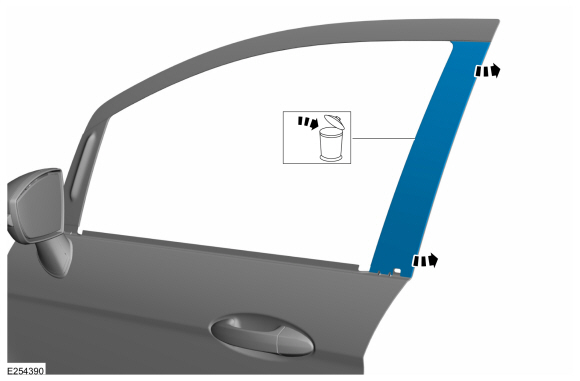

Remove and discard the front door upper moulding.
Installation
-
NOTE:
Make sure that a new component is installed.

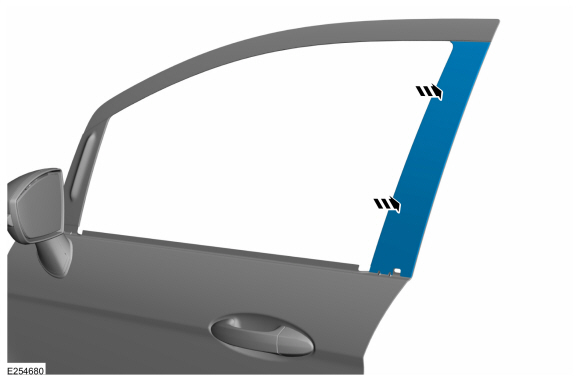

Install the front door uppper moulding.
-
To install, reverse the removal procedure.
