Ford Ecosport: Climate Control System - General Information / Removal and Installation - Condenser Outlet Line - 2.0L Duratec-HE (129kW/175PS)
Removal
NOTICE:
During the removal of components, cap, tape or otherwise
appropriately protect all openings to prevent the ingress of dirt or
other contamination. Remove protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details.
-
Recover the refrigerant.
Refer to: Air Conditioning (A/C) System Recovery, Evacuation and
Charging - Vehicles With: R134A Refrigerant (412-00 Climate Control
System - General Information, General Procedures).
-
With the vehicle in N , position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-

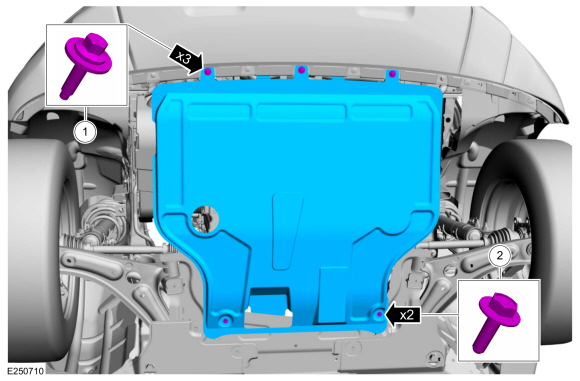

If equipped, remove the bolts and the underbody shield.
-

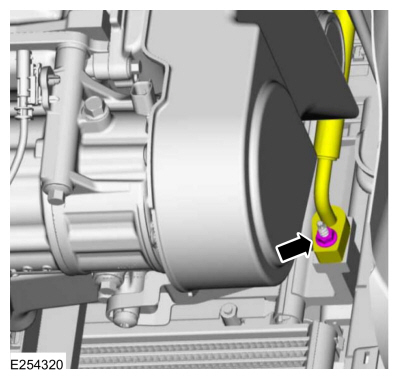

Remove the condenser outlet line nut.
-
Make sure to cover any open ports to prevent debris from entering the system.
Torque:
159 lb.in (18 Nm)
-

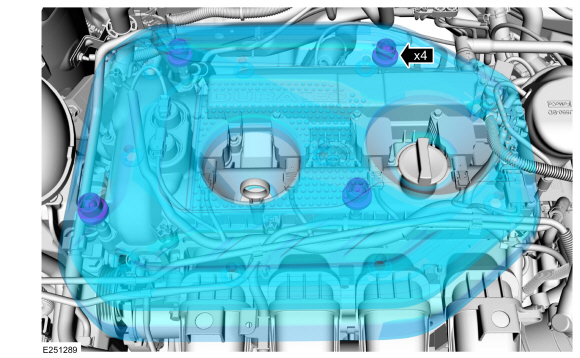

Remove the engine appearance cover.
-

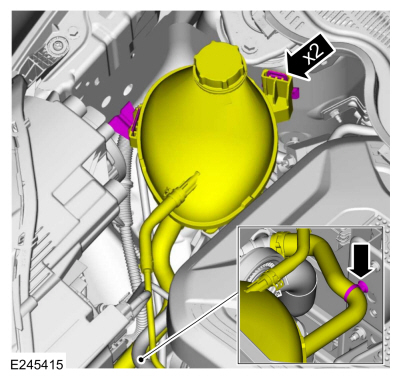

Release the tabs, retainer and position the degas bottle aside.
-
NOTE:
Some components removed for clarity.
-

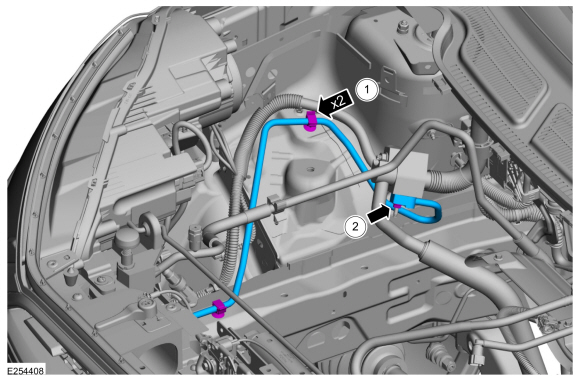

Release the condenser outlet line to frame retainers.
-
Remove the condenser outlet line nut and remove the
condenser outlet line. Make sure to cover any open ports to prevent
debris from entering the system.
Torque:
71 lb.in (8 Nm)
Installation
-
To install, reverse the removal procedure.
-
NOTICE:
Only use the specified material to lubricate the seals.
Install and lubricate new O-ring seals.
Refer to: Specifications (412-00)
.
-
Lubricate the refrigerant system with the correct amount
of clean PAG oil. Refer to the appropriate Refrigerant Oil Adding
procedure in Group 412.
