Ford Ecosport: Interior Trim and Ornamentation / Removal and Installation - Steering Column Shrouds
Special Tool(s) /
General Equipment
Flat-Bladed Screwdriver |
Interior Trim Remover |
Removal
-
-

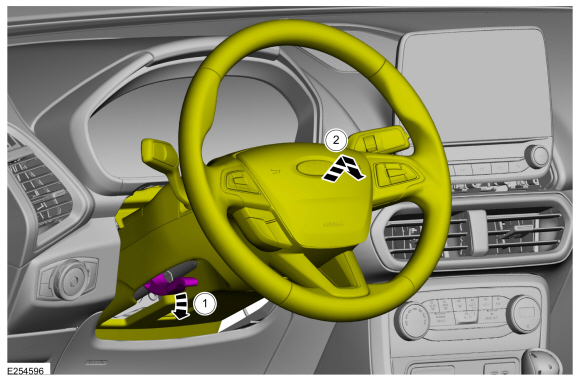

Lower the steering column adjustment lock.
-
Fully extend and lower the steering column.
-

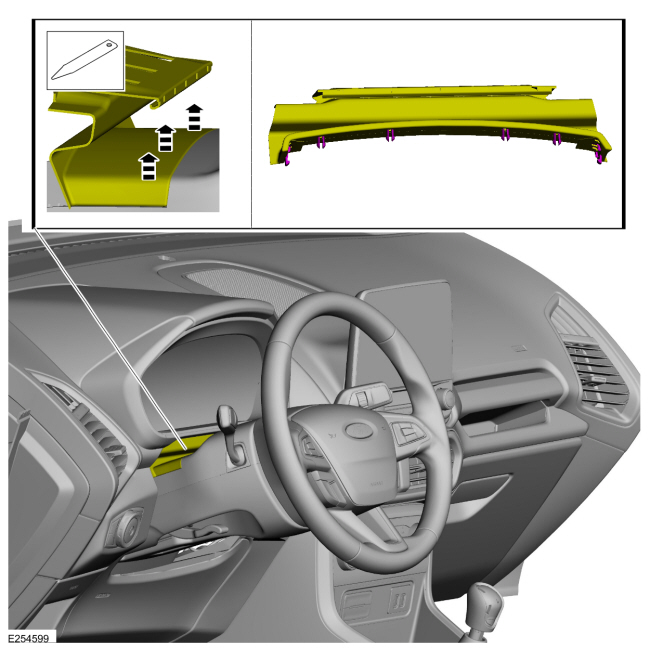

Release the tabs and disconnect the gap hider from the upper steering column shroud.
Use the General Equipment: Interior Trim Remover
-
Release the upper steering column shroud front clips.
-

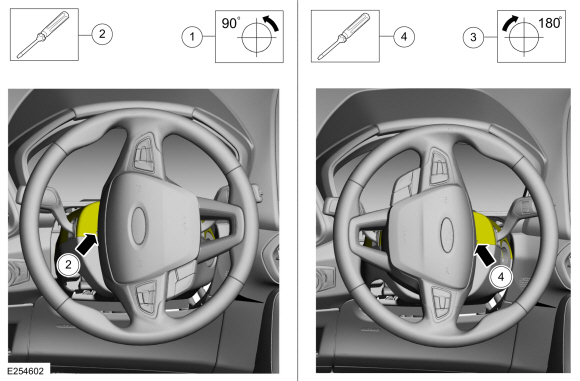

Rotate the steering wheel 90 degrees to the left.
-
Release the LH tab.
Use the General Equipment: Flat-Bladed Screwdriver
-
Rotate the steering wheel 180 degrees to the right.
-
Release the RH tab.
Use the General Equipment: Flat-Bladed Screwdriver
-

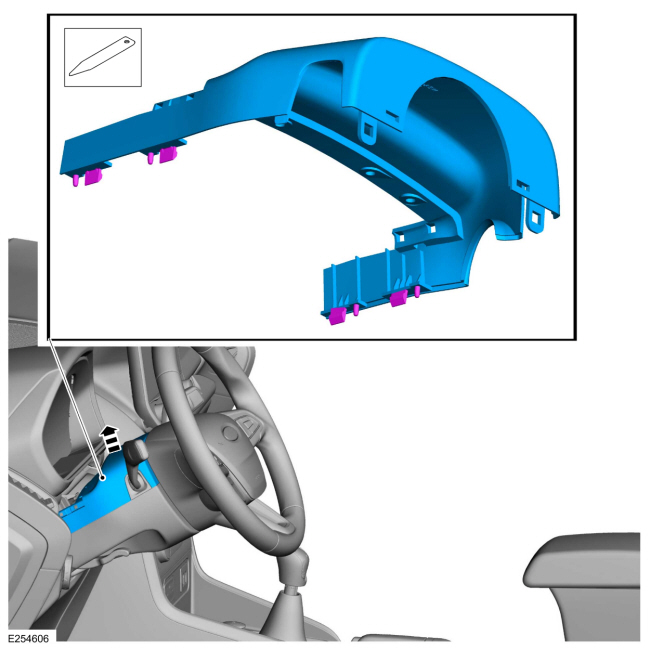

Release the tabs and remove the upper steering column shroud.
Use the General Equipment: Interior Trim Remover
-

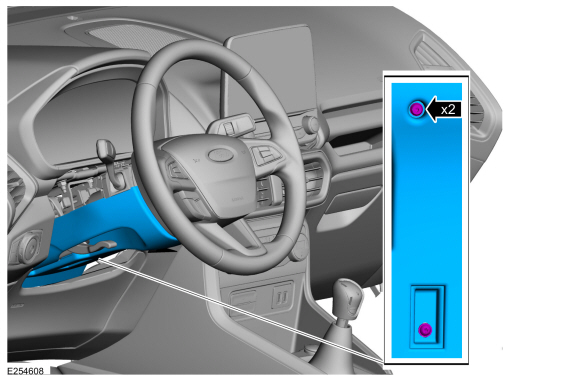

Remove the screws and the lower steering column shroud.
Installation
-
To install, reverse the removal procedure.
