Ford Ecosport: Electronic Engine Controls - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Powertrain Control Module (PCM)
Special Tool(s) /
General Equipment
Ford Diagnostic Equipment |
Removal
-
NOTE:
Removal steps in this procedure may contain installation details.
If installing a new PCM , connect a battery charger to the battery to
make sure it is charged to maintain proper battery voltage.
Refer to: Battery Charging (414-01 Battery, Mounting and Cables, General Procedures).
-
NOTE:
Powertrain Control Module (PCM) installation DOES
NOT require new keys or programming of keys, only a Parameter Reset of
the PATS .
NOTE:
This step is only necessary when installing a new component.
Download the module information to the diagnostic tool using the Programmable Modules Installation routine.
Refer to: Module Configuration - System Operation and Component
Description (418-01 Module Configuration, Description and Operation).
Use the General Equipment: Ford Diagnostic Equipment
-

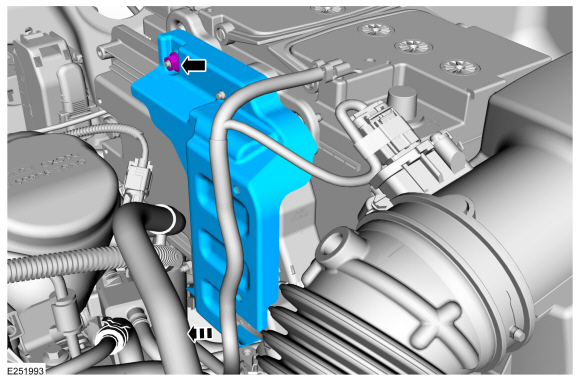

Remove the PCM cover.
-
Disconnect the electrical connectors.
-

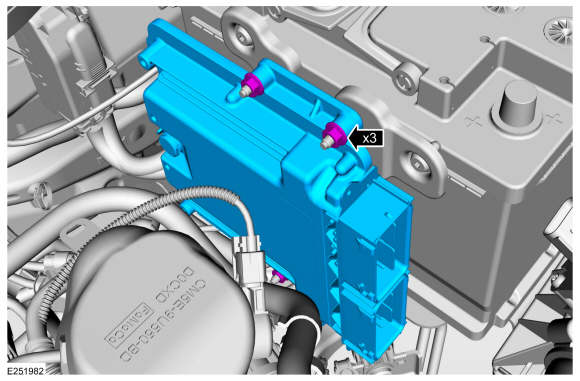

Remove the nuts and the PCM .
Torque:
89 lb.in ( 10 Nm)
Installation
-
To install, reverse the removal procedure.
-
NOTE:
This step is only necessary when installing a new component.
Upload the module information from the diagnostic tool
using the Programmable Modules Installation routine. Use the General
Equipment: Ford Diagnostic Equipment
Refer to: Module Programming (418-01 Module Configuration, General Procedures).
Use the General Equipment: Ford Diagnostic Equipment
-
NOTE:
The step is only necessary when installing a new component.
Reprogram the PATS
Refer to: Anti-Theft Key Programming - Scan Tool (419-01B Passive
Anti-Theft System (PATS) - Vehicles Without: Keyless Entry and Push
Button Start, General Procedures).
Refer to: Key Programming Using Two Programmed Keys (419-01C Passive
Anti-Theft System (PATS) - Vehicles With: Keyless Entry and Push Button
Start, General Procedures).
-
NOTE:
The step is only necessary when installing a new component.
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Disconnect and remove the MAF sensor.
Torque:
18 lb...
Materials
Name
Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor OilXO-5W20-Q1SP
WSS-M2C945-B1
Removal
NOTE:
Removal steps in this procedure may contain installation details...
