Ford Ecosport: Exterior Lighting / Removal and Installation - Front Turn Signal Lamp Bulb

Ford Ecosport 2014-2025 Service and Repair Manual / Lighting / Exterior Lighting / Removal and Installation - Front Turn Signal Lamp Bulb

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

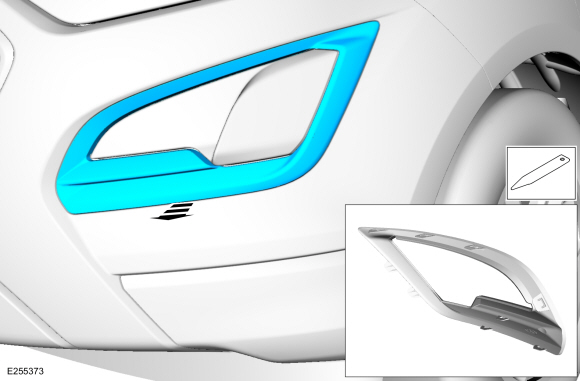

  1. Remove the combination front fog lamp turn signal assembly bezel.
    Use the General Equipment: Interior Trim Remover

  1. Remove the combination front fog lamp turn signal assembly screw and the assembly.
    • Disconnect the electrical connectors.
  1. Remove the turn signal socket from the combination front fog lamp turn signal assembly and remove the bulb from the socket.

Installation

  1. To install, reverse the removal procedure.
