Ford Ecosport: Transmission Cooling - 6-Speed Automatic Transmission – 6F35 / Removal and Installation - Cooler Bypass Valve

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in N , position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Remove the transmission fluid cooler tubes bracket bolt.
    Torque: 89 lb.in (10 Nm)

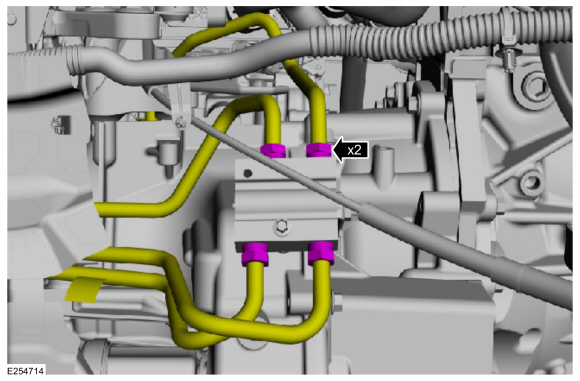

  1. NOTE: Be prepared to collect escaping fluid.

    Completely loosen the transmission fluid cooler tube fittings from the cooler bypass valve.
  1. Loosen the nut and remove the cooler bypass valve.
    Torque: 80 lb.in (9 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. Check the transmission fluid level and adjust as necessary.
    Refer to: Transmission Fluid Level Check (307-01B Automatic Transmission - 6-Speed Automatic Transmission – 6F35, General Procedures).
