Ford Ecosport: Fuel System - General Information - 2.0L Duratec-HE (129kW/175PS) / General Procedures - Fuel System Pressure Check

Special Tool(s) / General Equipment

310-025-18
Test Hose for 310-025
310-025-19A
Test Hose for 310-025
GV2323 Connector
Pressure Vacuum Transducer (C407)
Pressure Vacuum Transducer (C219) Adapter
Ford Diagnostic Equipment

Connect

  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

  1. Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions (100-00) .
  1. Release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00C Fuel System - General Information - 2.0L Duratec-HE (129kW/175PS), General Procedures).

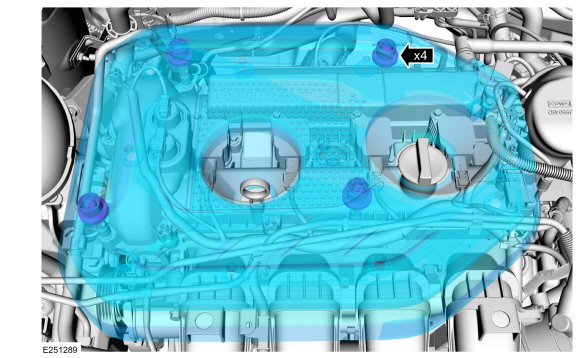

  1. If equipped, remove the engine appearance cover.

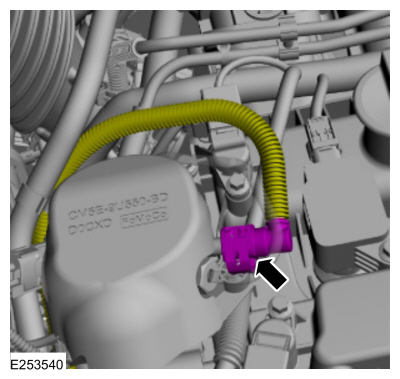

  1. Disconnect the quick release coupling.
    Refer to: Quick Release Coupling (310-00I) .

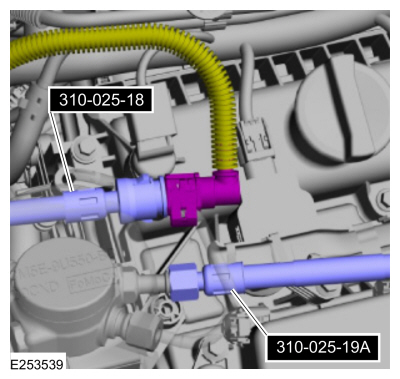

  1. Connect the following items:
    Use Special Service Tool: 310-025-18  Test Hose for 310-025. , 310-025-19A  Test Hose for 310-025.

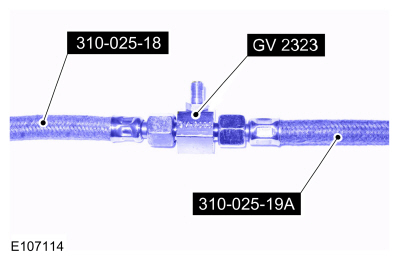

  1. Connect the following items:
    Use Special Service Tool: 310-025-18  Test Hose for 310-025. , 310-025-19A  Test Hose for 310-025.

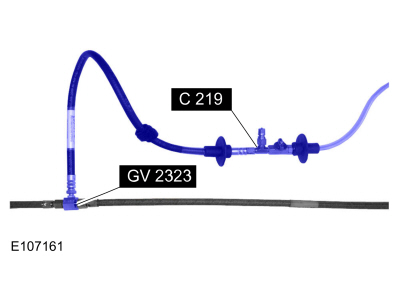

    Use the General Equipment: GV2323 Connector
  1. Connect the following items:
    Use the General Equipment: GV2323 Connector
    Use the General Equipment: Pressure Vacuum Transducer (C219) Adapter

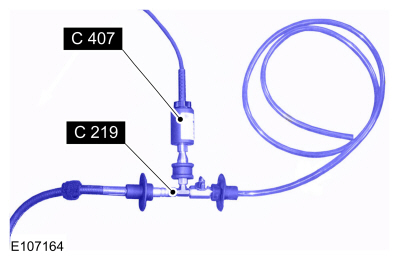

  1. Connect the following items:
    Use the General Equipment: Pressure Vacuum Transducer (C407)
    Use the General Equipment: Pressure Vacuum Transducer (C219) Adapter

Check

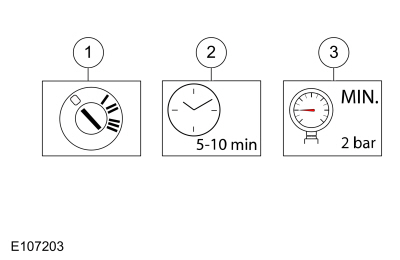

  1. Using the digital multi-meter function, measure the fuel system pressure.
    Use the General Equipment: Ford Diagnostic Equipment
  1. Use the General Equipment: Ford Diagnostic Equipment
  1. Use the General Equipment: Ford Diagnostic Equipment

Disconnect

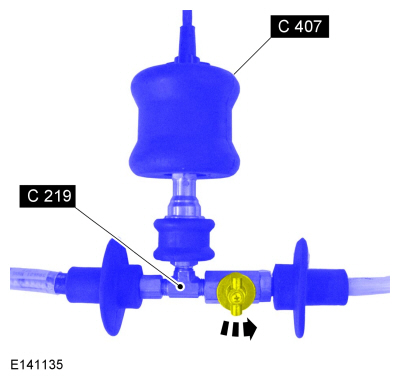

  1.   WARNING: Be prepared to collect escaping fluid.

    Release the fuel system pressure.
  1. Disconnect the following items:
    Use the General Equipment: Pressure Vacuum Transducer (C407)
    Use the General Equipment: Pressure Vacuum Transducer (C219) Adapter
  1. Disconnect the following items:
    Use the General Equipment: GV2323 Connector
    Use the General Equipment: Pressure Vacuum Transducer (C219) Adapter
  1. Remove the special tools.
    Use Special Service Tool: 310-025-18  Test Hose for 310-025. , 310-025-19A  Test Hose for 310-025.
    Use the General Equipment: GV2323 Connector
  1. Remove the special tools.
    Use Special Service Tool: 310-025-18  Test Hose for 310-025. , 310-025-19A  Test Hose for 310-025.
  1. Connect the quick release coupling.
    Refer to: Quick Release Coupling (310-00I) .
  1. If equipped, install the engine appearance cover.

    Diagnosis and Testing - Fuel System

    General Equipment Ford diagnostic equipment DTC Charts: Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...

    General Procedures - Fuel System Pressure Release

    Pressure release Remove the fuse F65 (fuel pump relay) from the junction box panel. Start the engine and allow it to idle until the engine stops...
